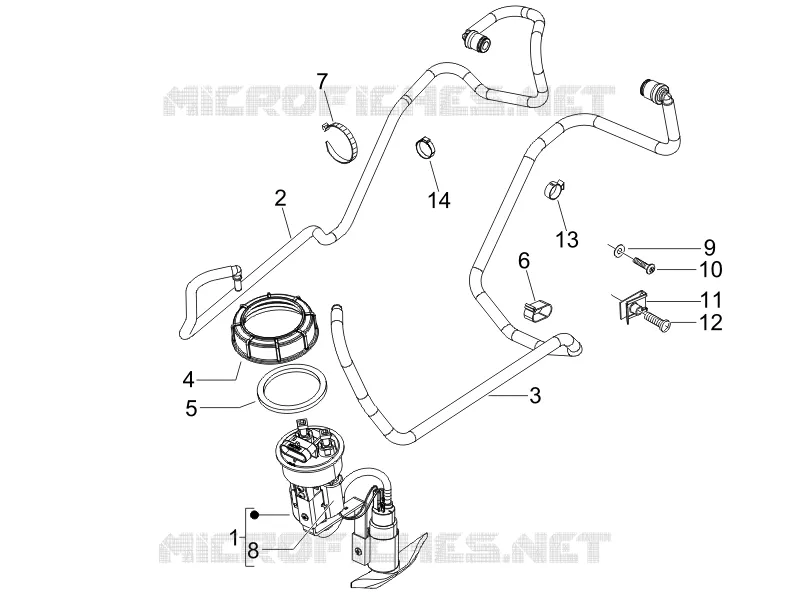

Supply system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Feed pump
639307
Not Available
2
Delivery fuel pipe
623655
Not Available
3
Fuel return hose
623657
$33,78 Unit Price incl. VAT
4
Ring nut
576546
$4,71 Unit Price incl. VAT
5
Gasket
576542
Not Available
6
Molletta
CM006910
$0,25 Unit Price incl. VAT
7
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
8
Fuel filter
639455
$85,05 Unit Price incl. VAT
9
Washer
012528
$0,34 Unit Price incl. VAT
10
screw
125647
$3,68 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Screw M6x16
272836
$3,70 Unit Price incl. VAT
13
Hose clamp
598795
$2,27 Unit Price incl. VAT
14
Hose clamp
623743
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
