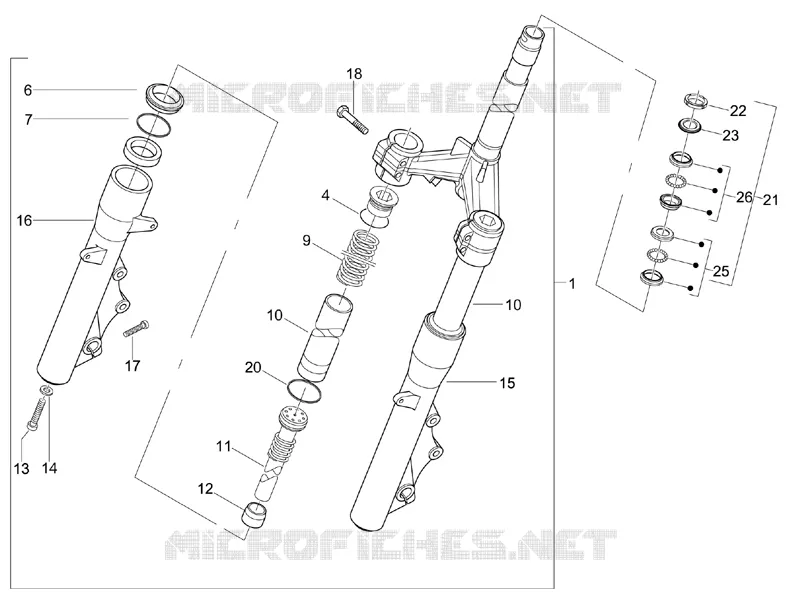

Fork/steering tube - Steering bearing unit
1
4
6
7
9
10
10
11
12
13
14
15
16
17
18
20
21
22
23
25
26
1
Front fork assy
CM077802
Not Available
4
O-ring
497017
$4,82 Unit Price incl. VAT
6
Dust cover
497131
Not Available
7
Fork oil seal
601310
$25,95 Unit Price incl. VAT
9
Spring
599421
$0,83 Unit Price incl. VAT
10
Sleeve
497073
Not Available
11
Fork cylinder
601308
$9,56 Unit Price incl. VAT
12
Oil plug
497011
$4,82 Unit Price incl. VAT
13
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
14
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
15
LH sleeve
497005
$94,98 Unit Price incl. VAT
16
RH sleeve
497006
Not Available
17
screw (Kayaba)
599262
$3,65 Unit Price incl. VAT
18
screw
600270
Not Available
20
Gasket ring
497132
$3,65 Unit Price incl. VAT
21
Steering bearing assy.
6009215
Not Available
22
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
23
Steering security plate
582787
$3,65 Unit Price incl. VAT
25
Lower steering bearing
650075
Not Available
26
Upper thrust ring
600750
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
