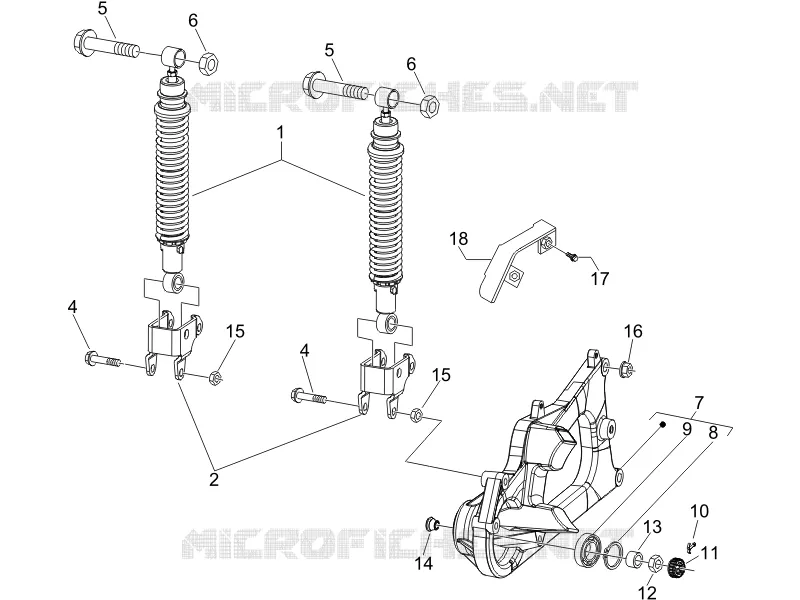

Rear suspension - Shock absorber/s
1
2
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
15
16
17
18
1
Rear shock absorber cpl.
647110
Not Available
2
Rear shock absorber fixing bracket
646838
$18,75 Unit Price incl. VAT
4
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
5
Screw w/ flange
598838
$1,46 Unit Price incl. VAT
6
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
7
Exaust pipe support
847254
Not Available
8
Circlip
006647
$1,10 Unit Price incl. VAT
9
Ball bearing
82545R
$12,11 Unit Price incl. VAT
10
Split pin
012789
$0,16 Unit Price incl. VAT
11
Nut hold cap
194423
$0,48 Unit Price incl. VAT
12
Nut M16x13
563728
$1,42 Unit Price incl. VAT
13
Spacer
597528
$1,51 Unit Price incl. VAT
14
Wheel spacer
848039
$18,12 Unit Price incl. VAT
15
Nut M8
020008
$0,08 Unit Price incl. VAT
16
Nut M10x1,25 6H
833520
$0,42 Unit Price incl. VAT
17
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
18
Bracket with U.P.
649636
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
