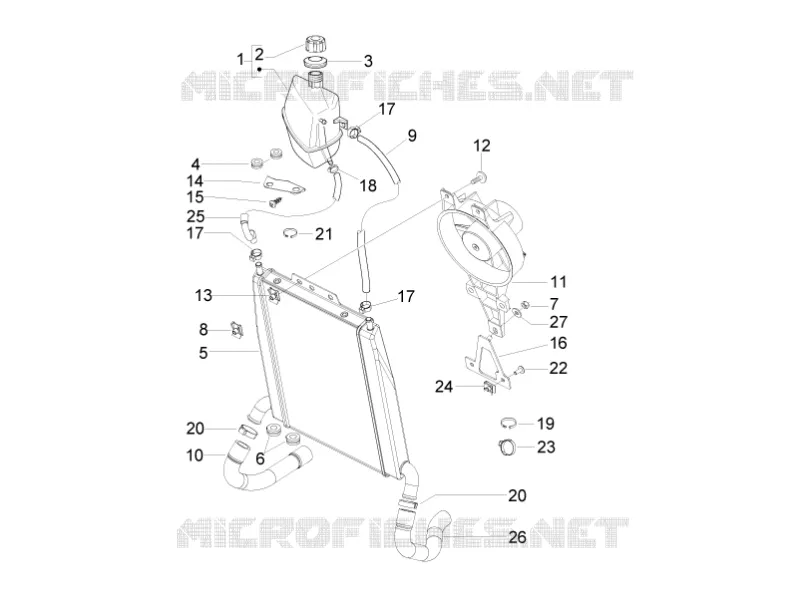

Cooling system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
18
19
20
20
21
22
23
24
25
26
27
1
Coolant tank
655527
$26,74 Unit Price incl. VAT
2
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
3
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
4
Lower rubber
258904
$0,25 Unit Price incl. VAT
5
Water cooler
623579
Not Available
6
Lower rubber
258904
$0,25 Unit Price incl. VAT
7
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Cooler-tank return pipe
621311
$1,53 Unit Price incl. VAT
10
Tube
623517
$13,44 Unit Price incl. VAT
11
Electric fan assy.
58211R
$69,69 Unit Price incl. VAT
12
Screw M6x16
272836
$3,70 Unit Price incl. VAT
13
Spring plate M6
254485
$0,34 Unit Price incl. VAT
14
Bracket
621090
$1,97 Unit Price incl. VAT
15
Plug screw
268596
$0,08 Unit Price incl. VAT
16
Electric fan coupling lower bracket
623543
$2,19 Unit Price incl. VAT
17
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
18
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
19
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
20
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
21
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
21
Hose clamp
CM001909
$3,65 Unit Price incl. VAT
22
Screw M6x16
272836
$3,70 Unit Price incl. VAT
23
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
24
Spring plate M6
254485
$0,34 Unit Price incl. VAT
25
Oil delivery pipe
CM007001
$2,61 Unit Price incl. VAT
26
Tube
623518
$14,73 Unit Price incl. VAT
27
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
