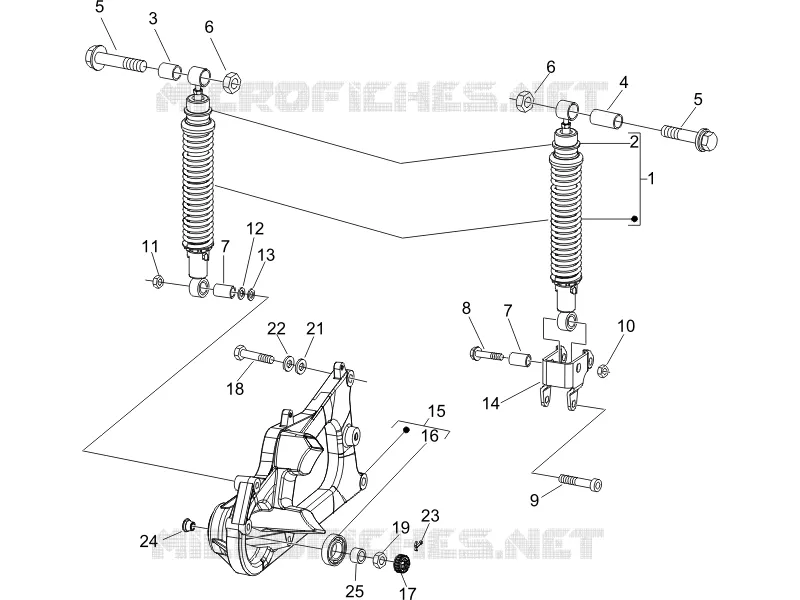

Rear suspension - Shock absorber/s
1
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
25
1
SHOCK ABSORBER X9
56231R
$39,10 Unit Price incl. VAT
2
Housing
274860
Not Available
3
Spacer
597178
$3,65 Unit Price incl. VAT
4
Spacer
597179
$3,65 Unit Price incl. VAT
5
Screw m10x65
015594
$0,72 Unit Price incl. VAT
6
Self locking nut M10
232108
Not Available
7
Bush
597149
$3,65 Unit Price incl. VAT
8
Hex screw M10x45
015578
$2,99 Unit Price incl. VAT
9
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
10
Nut M8
020008
$0,08 Unit Price incl. VAT
11
Self locking nut M10
232108
Not Available
12
Washer
016627
Not Available
13
Washer
709646
Not Available
14
LH clamp
598938
$7,01 Unit Price incl. VAT
15
SUSPENSION ARM ASSEMBLY
872329
Not Available
16
Ball bearing
82545R
$12,11 Unit Price incl. VAT
17
Nut hold cap
194423
$0,48 Unit Price incl. VAT
18
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
19
Nut M16x13
563728
$1,42 Unit Price incl. VAT
21
Washer
013776
$0,34 Unit Price incl. VAT
22
Spring washer
709047
$0,08 Unit Price incl. VAT
23
Split pin
012789
$0,16 Unit Price incl. VAT
24
Wheel spacer
848039
$18,12 Unit Price incl. VAT
25
Spacer
597528
$1,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
