by

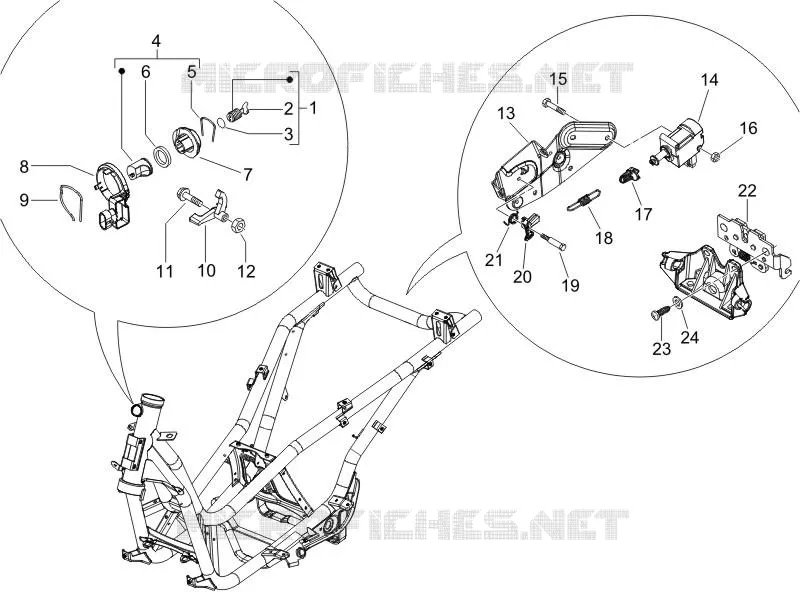

Locks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Cylinder with keys
576552
$48,63 Unit Price incl. VAT
2
Hewn key with transponder
575810
$55,57 Unit Price incl. VAT
3
Gasket ring
298731
$0,25 Unit Price incl. VAT
4
Block
577816
$20,60 Unit Price incl. VAT
5
Cylinder retainer spring
298838
$0,51 Unit Price incl. VAT
6
Flat washer
298594
$1,01 Unit Price incl. VAT
7
Lock body
298581
Not Available
8
Immobilizer antenna
828800
Not Available
9
Spring
253937
$0,25 Unit Price incl. VAT
10
Lock lever
575863
$5,38 Unit Price incl. VAT
11
Special screw
299972
$0,50 Unit Price incl. VAT
12
Self locking nut
577620
$0,08 Unit Price incl. VAT
13
Bracket
577194
$8,16 Unit Price incl. VAT
14
Solenoid valve
582990
Not Available
15
Hexagonal-head screw
584121
$0,34 Unit Price incl. VAT
16
Self locking nut
577620
$0,08 Unit Price incl. VAT
17
Joint
577128
$1,01 Unit Price incl. VAT
18
Spring
620415
$4,82 Unit Price incl. VAT
19
Special screw
299972
$0,50 Unit Price incl. VAT
20
Lever
577129
$1,43 Unit Price incl. VAT
21
Spring
577131
$4,82 Unit Price incl. VAT
22
Saddle/flap tightening
CM023704
$24,03 Unit Price incl. VAT
23
Screw M6x16
272836
$3,70 Unit Price incl. VAT
24
Washer
078307
$0,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
