Engine displacement
125
2
Model
X9
3
Year
2007
4
Trim
X9 Evolution Euro 3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6

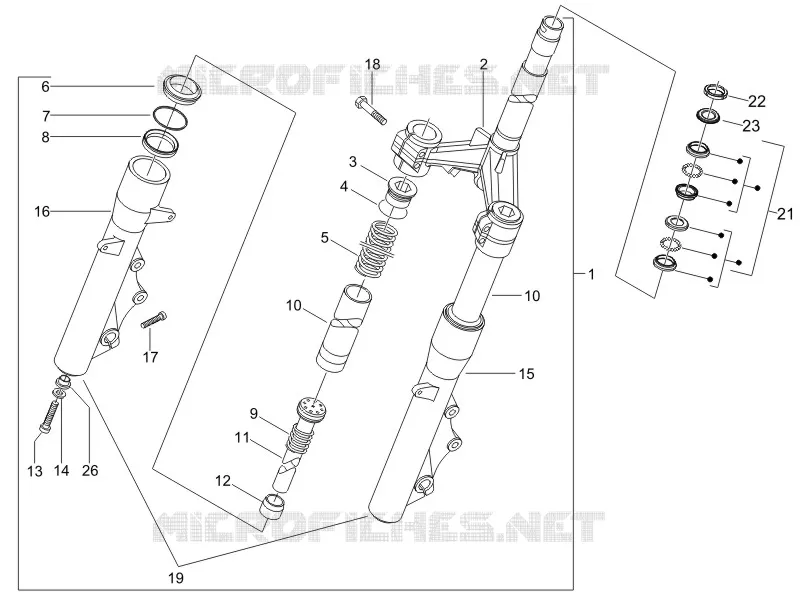

Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
21
22
23
26
1
Front fork
56267R
Not Available
2
FORK MOUNTING SUPPORT
647322
$183,18 Unit Price incl. VAT
3
Plug
601312
$7,11 Unit Price incl. VAT
4
O-ring
600615
$4,82 Unit Price incl. VAT
4
O-ring
497017
$4,82 Unit Price incl. VAT
5
Fork spring
600614
$7,72 Unit Price incl. VAT
5
Fork spring
601309
Not Available
6
Dust cover
600613
$8,65 Unit Price incl. VAT
6
Dust cover
497131
Not Available
7
Gasket ring
497132
$3,65 Unit Price incl. VAT
7
Fork oil seal
600608
$18,86 Unit Price incl. VAT
8
Fork oil seal
601310
$25,95 Unit Price incl. VAT
8
Ring
600612
$3,65 Unit Price incl. VAT
9
Fork spring
600619
$1,06 Unit Price incl. VAT
9
Spring
599421
$0,83 Unit Price incl. VAT
10
Fork stanchion ESCORTS
600607
Not Available
10
Fork stanchion KAIABA
601307
Not Available
11
Fork complete cylinder
600606
$6,03 Unit Price incl. VAT
11
Fork cylinder
601308
$9,56 Unit Price incl. VAT
12
Oil plug
497011
$4,82 Unit Price incl. VAT
13
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
14
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
14
Gasket
600611
Not Available
15
LH slider
600603
$100,47 Unit Price incl. VAT
15
LH sleeve
497005
$94,98 Unit Price incl. VAT
16
RH sleeve
497006
Not Available
16
RH slider
600604
Not Available
17
screw (Kayaba)
599262
$3,65 Unit Price incl. VAT
18
screw
600270
Not Available
21
Steering bearing assy.
600921
Not Available
22
Steering tube ring nut
011109
Not Available
23
Steering security plate
582787
$3,65 Unit Price incl. VAT
25
Missing description
000000
Not Available
26
Cover
601026
$0,84 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
