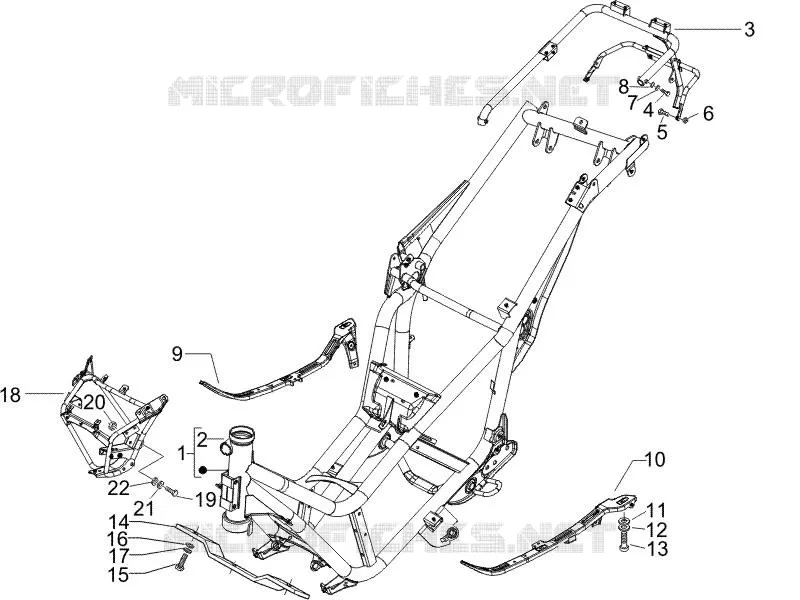

Frame/bodywork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
FRAME WITH I.P.
6224785
Not Available
2
Lock support
575357
$24,90 Unit Price incl. VAT
3
rear plastic support
5755442
$1 258,63 Unit Price incl. VAT
4
Screw m6x55
030059
$2,95 Unit Price incl. VAT
5
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
6
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
7
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
8
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
9
Pin r.h.
CM010202
Not Available
10
SUPPORT FOOT-BOARD CROSS-BAR WITH IP.
CM010204
Not Available
11
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
12
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
13
screw M6x16
031088
$0,17 Unit Price incl. VAT
14
Cross member
620869
Not Available
15
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
16
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
17
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
18
Frame
6210465
Not Available
19
screw M6x60
432142
$0,19 Unit Price incl. VAT
20
Nut
969224
$0,42 Unit Price incl. VAT
21
Washer 6,2x18x2
013950
$0,34 Unit Price incl. VAT
22
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
