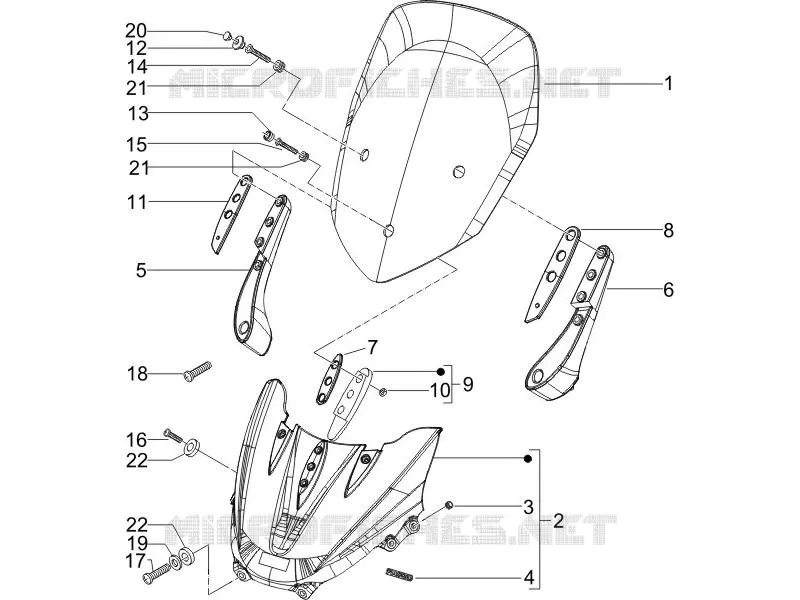

Windshield - Glass
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
1
Upper windscreen
577102
Not Available
2
Windshield lower part
5772650038
$104,06 Unit Price incl. VAT
2
Lower windscreen
57726500N3
Not Available
3
Cylindrical cable grommet
576565
$0,42 Unit Price incl. VAT
4
"Piaggio" Plate
5743990095
$4,82 Unit Price incl. VAT
5
Arm
577103
Not Available
6
Arm
577104
Not Available
7
Strip gasket
577107
Not Available
8
Gasket
577108
Not Available
9
Bracket
577110
Not Available
10
Nut M6
020206
$0,08 Unit Price incl. VAT
11
Gasket
577149
Not Available
12
Windshield stud
621940
Not Available
13
Knurled bushing
830056
$0,34 Unit Price incl. VAT
14
screw
255638
$0,15 Unit Price incl. VAT
15
screw
576836
$3,03 Unit Price incl. VAT
16
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
17
Screw m6x30
271891
$3,65 Unit Price incl. VAT
18
screw
414835
$0,15 Unit Price incl. VAT
19
Washer d6,2x20x1
013092
$0,17 Unit Price incl. VAT
20
Cover
577237
$5,38 Unit Price incl. VAT
21
Rubber spacer
560173
$0,77 Unit Price incl. VAT
22
Spacer
273288
$1,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
