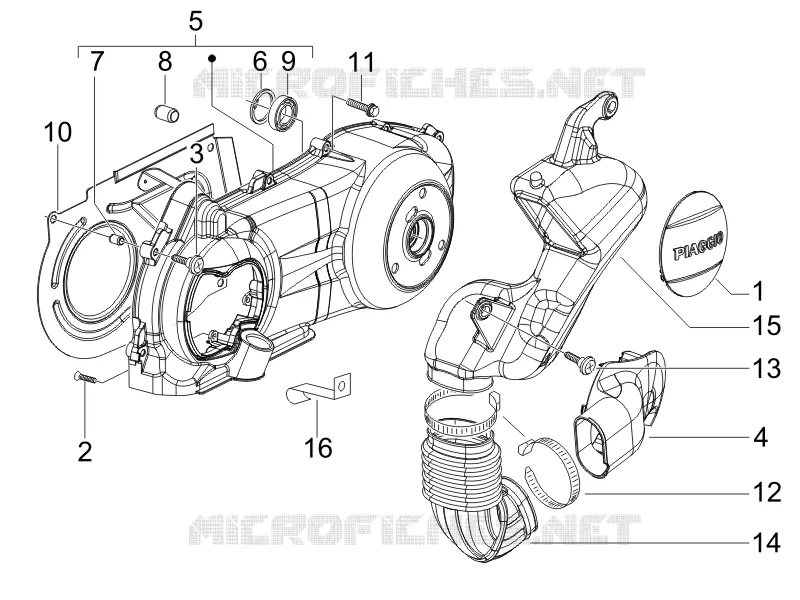

Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Plug
CM121901
Not Available
2
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
3
Self-tapping screw
430264
$2,99 Unit Price incl. VAT
4
Cooling Cover
840959
$5,38 Unit Price incl. VAT
5
Transmission cover cpl.
8413805
$137,01 Unit Price incl. VAT
6
Snap ring
006635
$0,25 Unit Price incl. VAT
7
Pin 6,5x9,5x15
239388
Not Available
8
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
9
Bearing
478985
Not Available
10
Hot air deflector
845395
Not Available
10
Air deflector
873682
$4,20 Unit Price incl. VAT
11
Screw w/ flange M6x30
289731
Not Available
12
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
13
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
14
Bellows
621251
$15,98 Unit Price incl. VAT
15
Cooloing box
621252
$10,57 Unit Price incl. VAT
16
Hose clamp
844964
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
