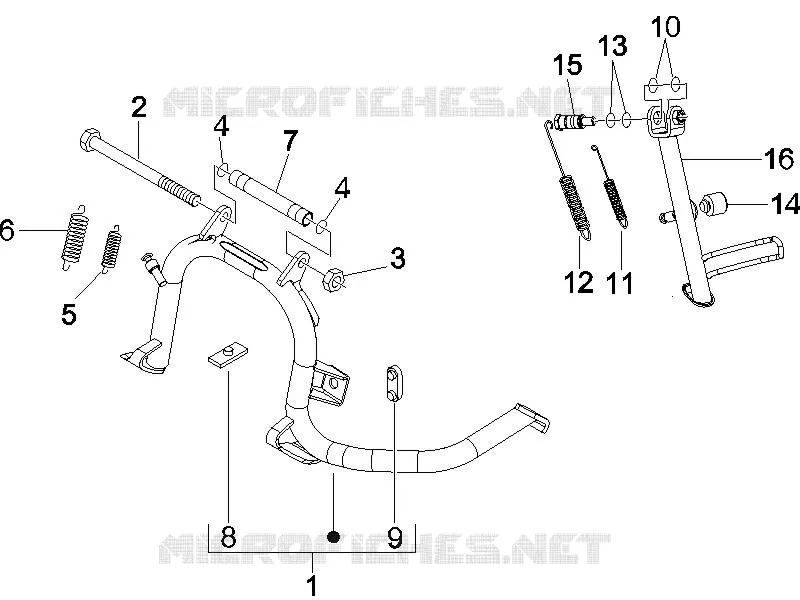

Stand/s
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Centre stand with I.P.
56190R
Not Available
2
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
3
Self locking nut M10
232108
Not Available
3
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
4
O-ring
273754
$0,16 Unit Price incl. VAT
5
Spring
581248
$2,01 Unit Price incl. VAT
6
Spring
581249
$2,44 Unit Price incl. VAT
7
Spacer
582298
$3,27 Unit Price incl. VAT
8
Pad
272426
Not Available
9
Pad
581560
$5,62 Unit Price incl. VAT
10
Gasket
191189
$0,17 Unit Price incl. VAT
11
Spring
295788
$4,82 Unit Price incl. VAT
12
Spring
295789
$4,82 Unit Price incl. VAT
13
O-ring 12,42x1
434947
$2,99 Unit Price incl. VAT
14
Stop buffer
582885
$5,53 Unit Price incl. VAT
15
Stand pin
599097
$3,65 Unit Price incl. VAT
16
Side stand
599176
Not Available
16
Lateral stand
647827
$18,05 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
