by

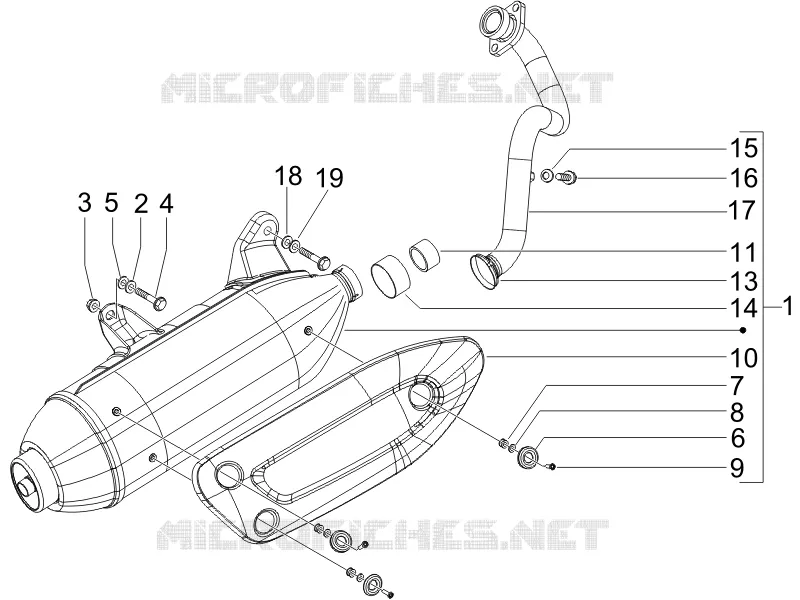

Silencer
1
3
4
6
7
8
9
10
11
13
14
15
16
17
18
19
1
SILENCER
843540
Not Available
3
Nut
436947
$0,42 Unit Price incl. VAT
4
Hex socket screw
598831
Not Available
6
Bowl
482282
$4,82 Unit Price incl. VAT
7
Fairlead
487665
$0,84 Unit Price incl. VAT
8
Flat washer
827526
$0,25 Unit Price incl. VAT
9
screw
844641
Not Available
9
screw M5x10
842908
Not Available
10
Protection
842404
$35,51 Unit Price incl. VAT
11
Graphite bushing
826388
Not Available
13
Hose clamp
82789R
Not Available
14
Hose clamp
842077
Not Available
15
Washer ø10.2xø15x2
016195
$2,95 Unit Price incl. VAT
16
Screw w/ flange M10
433122
$3,65 Unit Price incl. VAT
17
EXHAUST PIPE
846392
Not Available
18
Flat washer 19,3x8,2x2,5
848452
$0,84 Unit Price incl. VAT
19
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
