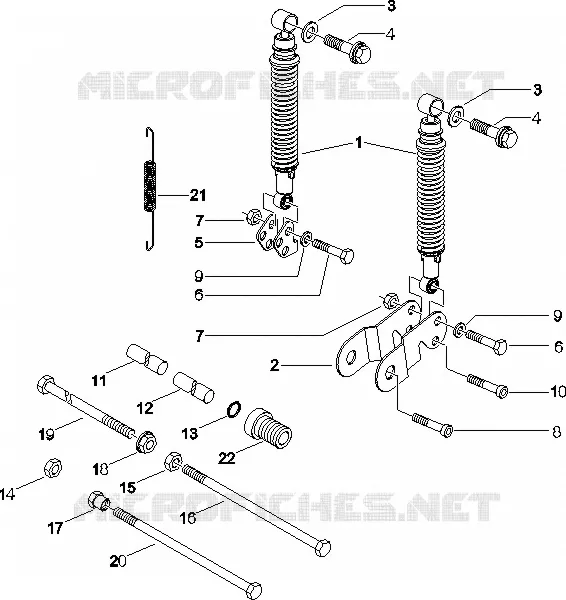

Rear suspension - Shock absorber/s
1
2
3
3
4
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Rear shock absorber cpl.
56235R
Not Available
2
LH clamp
598938
$7,01 Unit Price incl. VAT
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
Screw w/ flange
598838
$1,46 Unit Price incl. VAT
5
plate
599890
Not Available
6
Hex screw M10x45
015578
$2,99 Unit Price incl. VAT
7
Nut M8
020008
$0,08 Unit Price incl. VAT
8
screw
436787
Not Available
9
Washer
709646
Not Available
10
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
11
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
12
Spacer L=228 mm
CM067803
$11,11 Unit Price incl. VAT
13
Circlip
006416
$0,08 Unit Price incl. VAT
14
Self locking nut M10
231370
$0,38 Unit Price incl. VAT
14
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
15
Self locking nut M10
232108
Not Available
16
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
17
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
18
Nut
564878
$2,99 Unit Price incl. VAT
19
Hex socket screw
597080
$6,60 Unit Price incl. VAT
20
screw
597081
$5,20 Unit Price incl. VAT
21
Spring
597490
$4,82 Unit Price incl. VAT
22
Threaded bush
597774
$15,31 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
