by

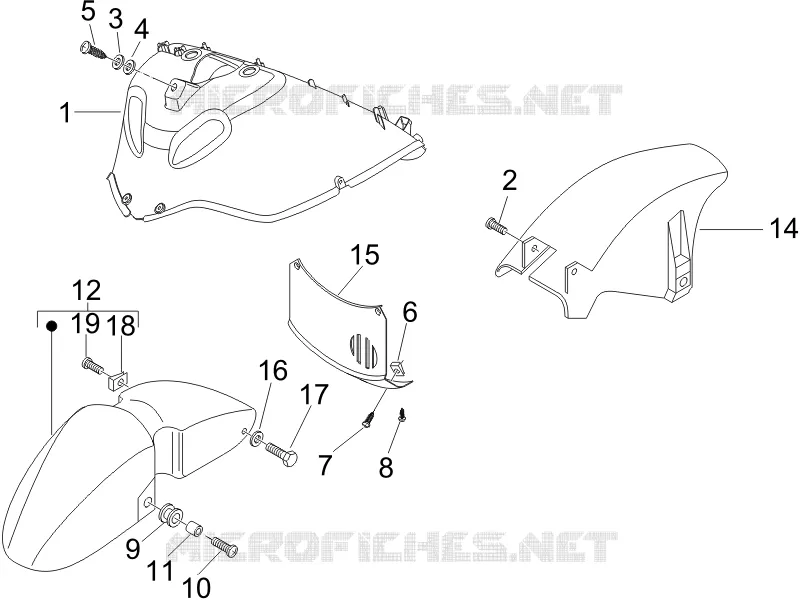

Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
1
Wheel compartment
623589000P
$28,09 Unit Price incl. VAT
1
OPENING WHEEL
62358900E8
$56,87 Unit Price incl. VAT
2
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
3
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
4
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
5
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
6
Spring plate
CM017410
$0,34 Unit Price incl. VAT
7
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
8
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
9
Pad
217163
$0,54 Unit Price incl. VAT
10
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
11
Spacer
598288
$3,65 Unit Price incl. VAT
12
Front mudguard
647017
$46,98 Unit Price incl. VAT
14
Rear mudguard
620902
$17,83 Unit Price incl. VAT
15
Wheel housing small cover
623669
$7,69 Unit Price incl. VAT
15
Wheel housing lower closing
624088000P
Not Available
16
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
17
Screw w/ flange M6x25
414837
Not Available
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Screw M6x16
272836
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
