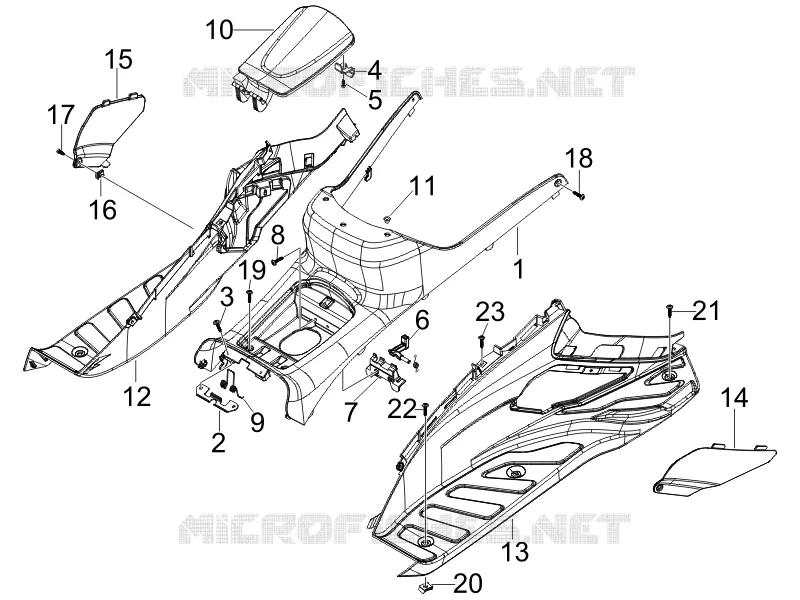

Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
CENTRAL TUNNEL
653794000C
$17,08 Unit Price incl. VAT
2
Flap retainer plate
624465
$6,30 Unit Price incl. VAT
3
Plug screw
268596
$0,08 Unit Price incl. VAT
4
Square
299689
Not Available
5
Self tapping screw
297498
$0,08 Unit Price incl. VAT
6
Cam lever
576626
$1,51 Unit Price incl. VAT
7
Maintenance
620491
$1,43 Unit Price incl. VAT
8
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
9
Spring
621507
$2,77 Unit Price incl. VAT
10
FUEL TANK COVER
653795000C
$5,69 Unit Price incl. VAT
11
Knurled bushing
830056
$0,34 Unit Price incl. VAT
12
RIGHT FOOTBOARD
653821000C
Not Available
13
LEFT FOOTBOARD
653822000C
Not Available
14
PORTHOLE INSPECTION SPARK
653832000C
$2,79 Unit Price incl. VAT
15
RIGHT PORTHALE ISPECTION SPARK
653833000C
$2,79 Unit Price incl. VAT
16
Spring plate
CM017410
$0,34 Unit Price incl. VAT
17
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
17
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
18
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
18
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
19
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
19
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
20
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
20
Spring plate M6
254485
$0,34 Unit Price incl. VAT
21
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
21
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
22
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
23
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
