1
Engine displacement
125
2
Model
X7
3
Year
2009
4
Trim
X7 ie Euro 3
5
Parts Catalog

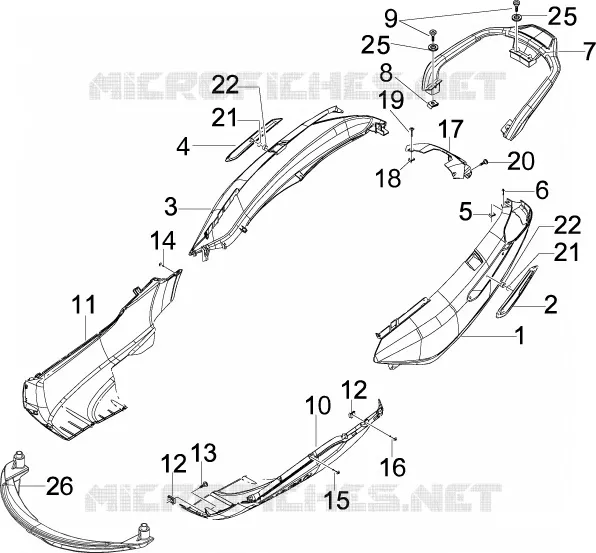

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Crankshaft
by
Rear suspension - Shock absorber/s
Side cover - Spoiler
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
21
22
22
25
25
26
1
Rear body side l.h.
653811
$29,51 Unit Price incl. VAT
1
Rear body side l.h.
65381100EU
Not Available
1
Rear body side l.h.
65381100RR
Not Available
1
Rear body side l.h.
65381100BT
Not Available
1
Rear body side l.h.
65381100XN2
Not Available
2
Left rear moulding
653813000C
$7,94 Unit Price incl. VAT
3
Rear body side r.h.
65381600RR
$136,66 Unit Price incl. VAT
3
Rear body side r.h.
65381600XN2
Not Available
3
Rear body side r.h.
65381600BT
Not Available
3
Rear body side r.h.
65381600EU
Not Available
3
Rear body side r.h.
653816
$35,81 Unit Price incl. VAT
4
Right rear moulding
653818000C
$8,54 Unit Price incl. VAT
5
Spring plate
CM017410
$0,34 Unit Price incl. VAT
6
Self-tap screw
576189
$0,05 Unit Price incl. VAT
7
Passenger handle
65643100XN2
Not Available
7
Passenger handle
656431
Not Available
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
screw
414835
$0,15 Unit Price incl. VAT
9
screw M6x45
655366
Not Available
10
Left spoiler
65686300BT
Not Available
10
Left spoiler
65686300EU
Not Available
10
Left spoiler
65686300RR
Not Available
10
Left spoiler
656863
Not Available
10
Left spoiler
65686300XN2
Not Available
11
Right spoiler
65686200EU
$128,77 Unit Price incl. VAT
11
Right spoiler
65686200XN2
Not Available
11
Right spoiler
656862
$110,10 Unit Price incl. VAT
11
Right spoiler
65686200BT
Not Available
11
Right spoiler
65686200RR
Not Available
12
Spring plate
CM017410
$0,34 Unit Price incl. VAT
13
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
13
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
14
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
15
Self tapping screw
297498
$0,08 Unit Price incl. VAT
16
Self-tap screw
576189
$0,05 Unit Price incl. VAT
17
Fairing closure
65382000RR
Not Available
17
Fairing closure
65382000EU
$25,95 Unit Price incl. VAT
17
Fairing closure
65382000XN2
$23,60 Unit Price incl. VAT
17
Fairing closure
653820
$10,73 Unit Price incl. VAT
17
Fairing closure
65382000BT
Not Available
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Self tapping screw
CM178608
$0,16 Unit Price incl. VAT
19
Self tapping screw M4,2x25
259372
$2,99 Unit Price incl. VAT
20
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
20
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
21
Plate
180859
$2,95 Unit Price incl. VAT
22
Spacer
479882
$0,67 Unit Price incl. VAT
25
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
26
Front air socket
656877
$6,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
