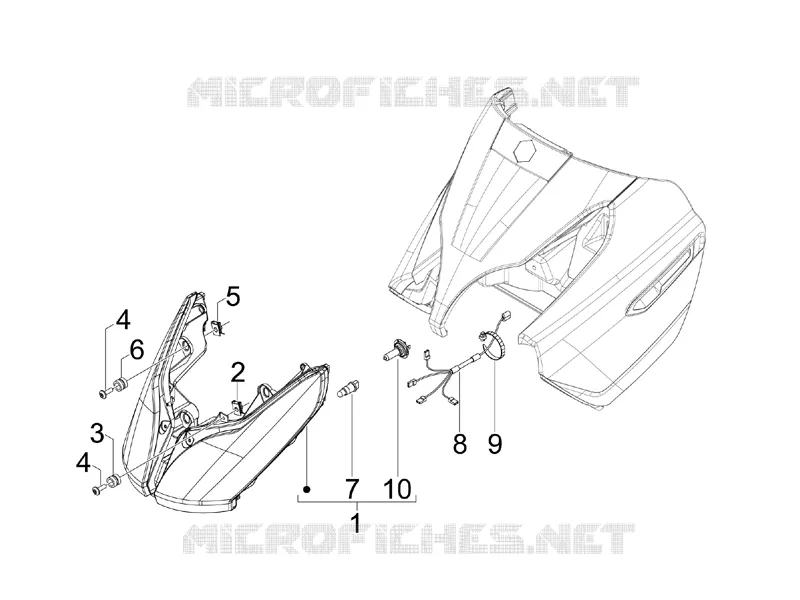

Front headlamps - Turn signal lamps
1
2
3
4
4
5
6
7
8
9
10
1
HEADLAMP
641698
Not Available
2
Spring plate M6
254485
$0,34 Unit Price incl. VAT
3
Elastic drift
463195
Not Available
4
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Elastic spring
231590
$0,25 Unit Price incl. VAT
6
Elastic drift
463195
Not Available
7
Lamp 12V-5W
292022
Not Available
7
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
8
HEADLAMP WIRING HARNESS
641043
Not Available
9
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
10
Lamp H7 12V-55W
294353
$17,40 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
