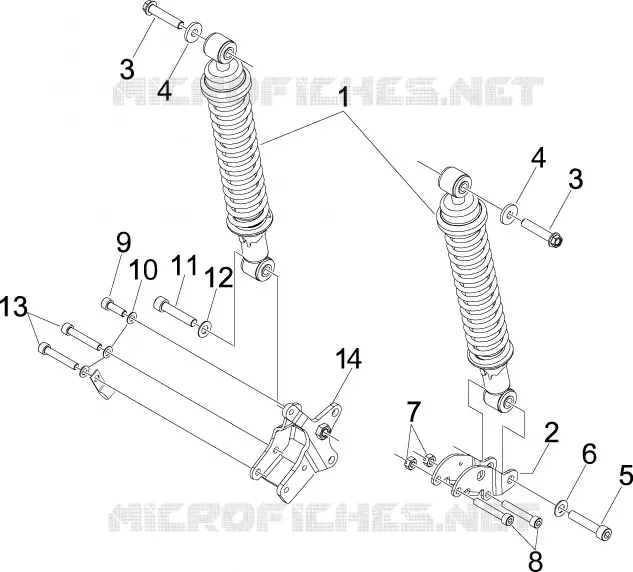

Rear suspension - Shock absorber/s
1
2
3
3
4
4
5
6
7
8
10
11
12
13
14
1
COMPL. REAR SHACK ABSORBER
58505R
Not Available
2
LH clamp
598938
$7,01 Unit Price incl. VAT
3
Screw w/ flange
598838
$1,46 Unit Price incl. VAT
4
Flat washer
178790
$0,51 Unit Price incl. VAT
5
screw
583480
$0,84 Unit Price incl. VAT
6
Washer
709646
Not Available
7
Nut M8
020008
$0,08 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
10
Spring washer
709047
$0,08 Unit Price incl. VAT
11
screw
583480
$0,84 Unit Price incl. VAT
12
Washer
709646
Not Available
13
screw
018555
$3,65 Unit Price incl. VAT
14
RH clamp
650159
$12,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
