1
Engine displacement
125
2
Model
X7
3
Year
2009
4
Trim
X7 ie Euro 3
5
Parts Catalog

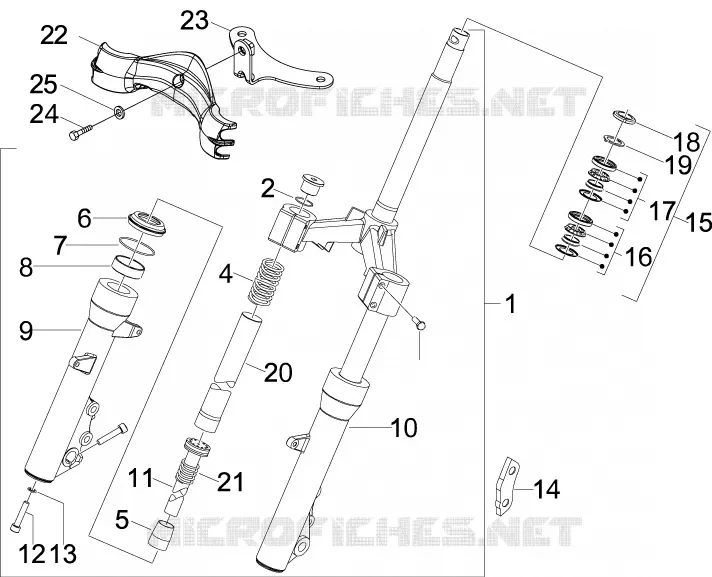

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Cooler pump
by
Rear cover - Splash guard
Fork/steering tube - Steering bearing unit
1
2
4
5
6
7
8
9
10
11
12
13
15
16
17
19
20
21
22
23
24
25
1
COMPLETE FRONT FORK
56424R
$633,05 Unit Price incl. VAT
2
O-ring
497017
$4,82 Unit Price incl. VAT
3
screw
649019
$4,36 Unit Price incl. VAT
4
SPRING
649990
Not Available
5
Oil plug
497011
$4,82 Unit Price incl. VAT
6
Dust cover
497131
Not Available
7
Gasket ring
497132
$3,65 Unit Price incl. VAT
8
Fork oil seal
601310
$25,95 Unit Price incl. VAT
9
RH sleeve
497006
Not Available
10
LH sleeve
497005
$94,98 Unit Price incl. VAT
11
FORK CYILINDER
649989
Not Available
12
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
13
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
15
Steering bearing assy.
600921
Not Available
16
Lower steering bearing
CM061304
Not Available
16
Lower steering bearing
650075
Not Available
17
Cover
599931
$5,21 Unit Price incl. VAT
17
Upper thrust ring
600750
Not Available
19
Steering security plate
582787
$3,65 Unit Price incl. VAT
20
Sleeve
497073
Not Available
21
Spring
599421
$0,83 Unit Price incl. VAT
22
COMPLETE COVER
651493
$10,18 Unit Price incl. VAT
23
BRACKET ASSY
665580
$3,78 Unit Price incl. VAT
24
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
25
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
