1
Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog

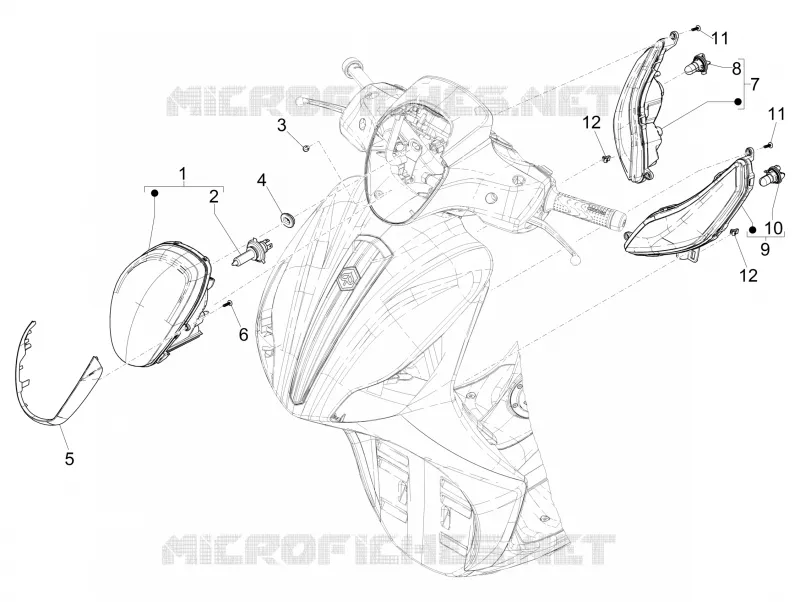

HEADLIGHT - INDICATORS
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
CYLINDER HEAD - VALVES
HEADLIGHT - INDICATORS
1
2
3
4
5
5
6
7
8
9
10
11
11
12
12
1
Projecteur complet
1D001231
$91,59 Unit Price incl. VAT
2
Lamp H4 12V-60/55W
292723
$10,39 Unit Price incl. VAT
3
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
4
Pad
1B000888
$0,25 Unit Price incl. VAT
5
Encadrement de projecteur
1B003736
$16,28 Unit Price incl. VAT
5
Encadrement de projecteur
1B002432
$14,16 Unit Price incl. VAT
6
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
7
Clignotant avant D
1D001233
$78,10 Unit Price incl. VAT
8
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
9
Clignotant avant G
1D001232
$78,10 Unit Price incl. VAT
10
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
11
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
12
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
