1
Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog

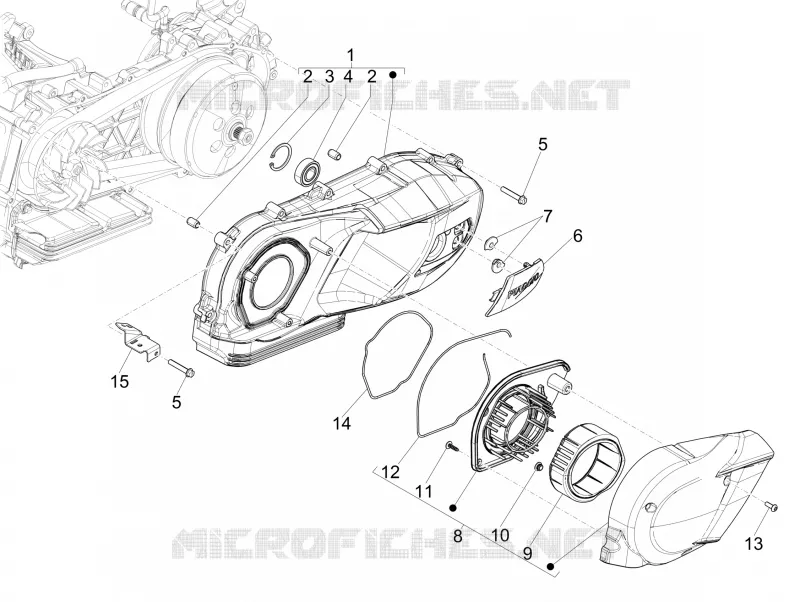

Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Transmission set
by
Front shield
Crankcase cover - Crankcase cooling
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
Couvercle transmission cpl.
1A0033285
$113,82 Unit Price incl. VAT
2
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
3
Snap ring
006635
$0,25 Unit Price incl. VAT
4
Radial bearing 15x35x11
4789853
$6,05 Unit Price incl. VAT
5
screw M6x35
1A000348
$2,25 Unit Price incl. VAT
6
Transmission cover
1A007150
$4,32 Unit Price incl. VAT
7
Retainer buffer
871458
$1,09 Unit Price incl. VAT
8
Couvercle refroidissement complet
1A005686
$16,76 Unit Price incl. VAT
9
Elément filtrant
1A004447
$0,63 Unit Price incl. VAT
10
Bushing
B015908
$1,18 Unit Price incl. VAT
11
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
12
Joint couvercle refroidissement
1A004448
$1,77 Unit Price incl. VAT
13
Hex socket screw M5x14
B016455
$0,34 Unit Price incl. VAT
14
Cooling system cover gasket
1A003394
$4,12 Unit Price incl. VAT
15
Support bracket
1A005710
$1,75 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
