1
Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Crankcase
6

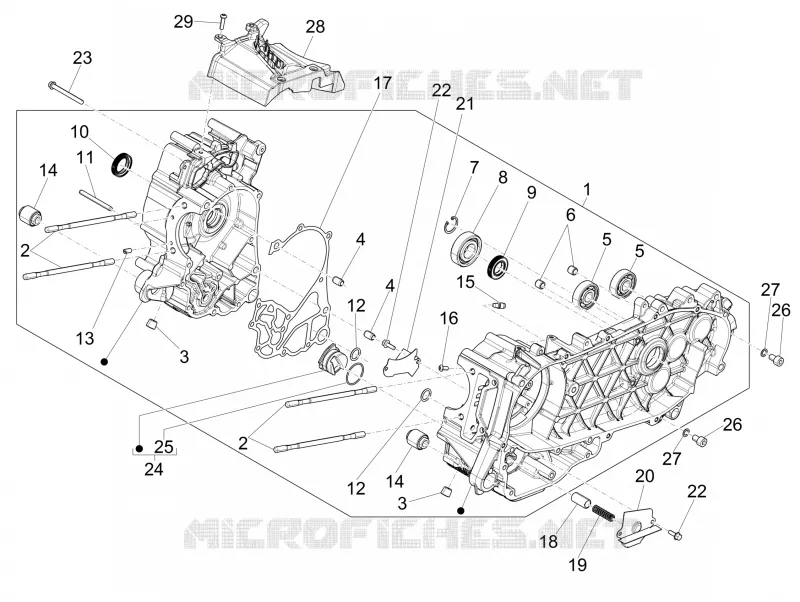

Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Saddle/seats
Crankcase
1
1
1
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
17
17
18
19
20
21
22
22
23
24
25
26
26
27
27
28
29
1
Carter complet 1e cat.
CM30740101
$483,01 Unit Price incl. VAT
1
Carter complet 2e cat.
CM2856010B
Not Available
1
Carter complet 2e cat.
CM30740102
$486,85 Unit Price incl. VAT
1
Carter complet 1e cat.
CM2856010A
Not Available
2
Stud bolt
1A001406
$3,61 Unit Price incl. VAT
3
Plug M12x1,5x11
B015433
$2,66 Unit Price incl. VAT
4
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
5
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
6
Locating dowel
B015957
$0,59 Unit Price incl. VAT
7
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
8
Radial bearing 20x50x14
83027R
$9,16 Unit Price incl. VAT
9
Gasket ring 20.35.7
1A005746
$9,08 Unit Price incl. VAT
10
Gasket ring 24.35.7
1A005745
$8,53 Unit Price incl. VAT
11
Stud bolt
1A001860
$1,21 Unit Price incl. VAT
12
O-ring
273754
$0,16 Unit Price incl. VAT
13
Calibrated nozzle
1A001364
$1,54 Unit Price incl. VAT
14
Silent-block moteur
1A008919R
$8,32 Unit Price incl. VAT
14
Silent-block
486081
$6,73 Unit Price incl. VAT
15
Piston cooling jet
1A002024
$4,60 Unit Price incl. VAT
16
Screw
1A005607
$3,11 Unit Price incl. VAT
17
Half crankcase gasket
1A001115
$1,45 Unit Price incl. VAT
18
Oil pressure adjusting valve
B015432
$2,61 Unit Price incl. VAT
19
Valve spring
B015431
$0,50 Unit Price incl. VAT
20
Oil bulhead
B014134
$4,12 Unit Price incl. VAT
21
Upper oil bulkhead
B014135
$2,02 Unit Price incl. VAT
22
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
23
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
24
Filter door insert
B015430
$3,87 Unit Price incl. VAT
25
Gasket
431065
$0,42 Unit Price incl. VAT
26
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
27
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
28
Convoyeur air
1A004883
$6,02 Unit Price incl. VAT
29
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
