1
Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
TAIL LIGHTS - INDICATORS
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Rear cover - Splash guard

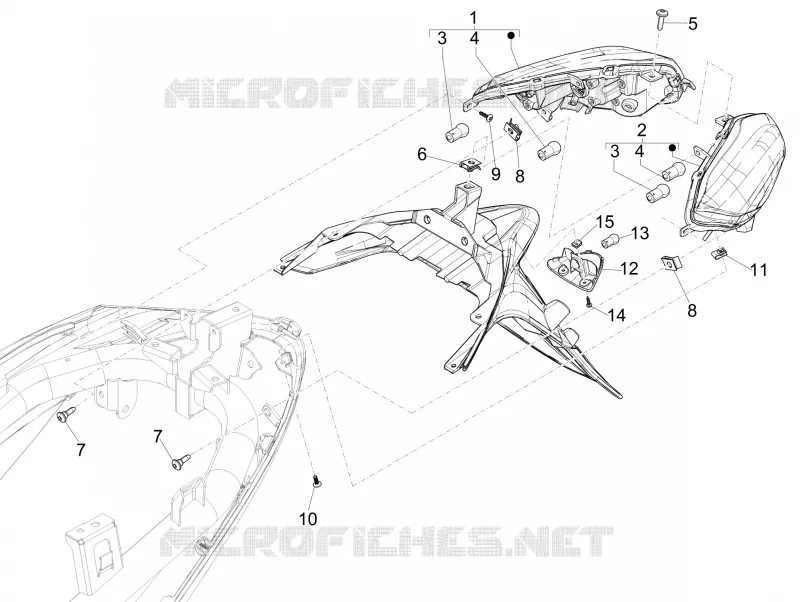

TAIL LIGHTS - INDICATORS
1
2
3
3
4
4
5
6
7
7
8
8
9
10
11
12
12
13
14
15
1
Feu arrière droit avec clignotant
1D001234
$95,20 Unit Price incl. VAT
2
Feu arrière gauche avec clignotant
1D001118
$95,20 Unit Price incl. VAT
3
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
4
Lamp 12V-16W
638536
$2,22 Unit Price incl. VAT
5
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
10
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
11
Spring plate
CM017410
$0,34 Unit Price incl. VAT
12
Number plate lamp
1D0012520000C
Not Available
12
Number plate lamp
1D0018520000C
Not Available
13
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
14
Self tapping screw
297498
$0,08 Unit Price incl. VAT
15
Spring plate
CM017403
$0,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
