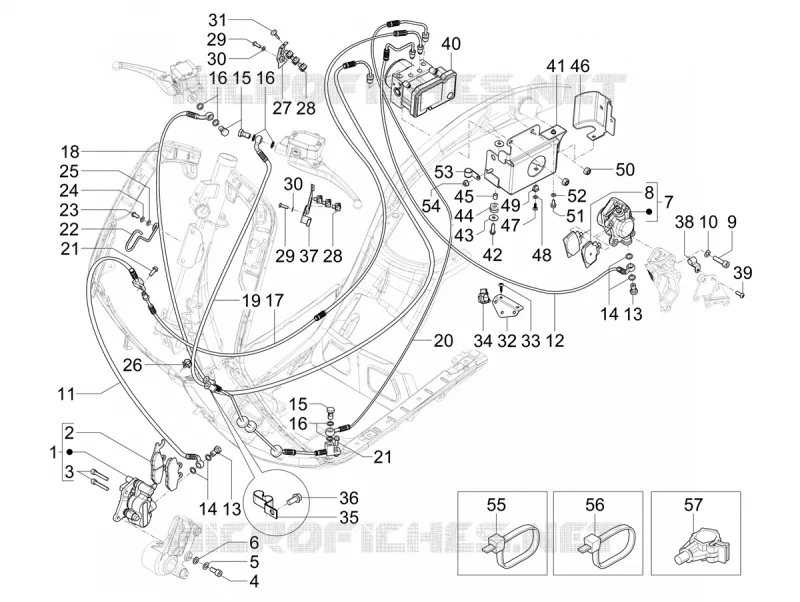

Brakes pipes - Calipers (ABS)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
1
Front brake caliper
CM068320
$132,30 Unit Price incl. VAT
2
Brake pads couple
668021
$105,58 Unit Price incl. VAT
3
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
4
Vis tête cylindrique à six pans creux M8x20
1C006239
$0,59 Unit Price incl. VAT
5
Spring washer
709047
$0,08 Unit Price incl. VAT
6
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
7
Étrier de frein hydraulique
CM294804
$121,08 Unit Price incl. VAT
8
Paire de plaquettes de frein
1C006586
$49,43 Unit Price incl. VAT
9
Vis
1C004169
$0,59 Unit Price incl. VAT
10
Spring washer
709047
$0,08 Unit Price incl. VAT
11
Brake hydraulic piping (pin-terminal)
1C000006
$72,63 Unit Price incl. VAT
12
Rear brake hydraulic piping.
1C000168
$124,32 Unit Price incl. VAT
13
Special screw
1C002059R
$2,02 Unit Price incl. VAT
14
Gasket
127927
$0,25 Unit Price incl. VAT
15
Special screw
1C002059R
$2,02 Unit Price incl. VAT
16
Gasket
127927
$0,25 Unit Price incl. VAT
17
Brake pipe (ABS-Junction unit)
1C000020
$99,37 Unit Price incl. VAT
18
Brake hydraulic piping (left junction-Pump)
1C000036
$153,42 Unit Price incl. VAT
19
LH brake pump - ABS unit pipe
1C000035
$165,71 Unit Price incl. VAT
20
Flexible brake hydraulic hose (ABS-left junction)
1C000033
$105,61 Unit Price incl. VAT
21
Screw w/ flange M6x14
874554
$0,25 Unit Price incl. VAT
22
Wiring clip
1C000046
$5,46 Unit Price incl. VAT
23
Screw w/ flange M6x14
874554
$0,25 Unit Price incl. VAT
24
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
25
Rondelle plate
272932
Not Available
26
Elastic spring
231590
$0,25 Unit Price incl. VAT
27
Bracket with U.P.
1C000009
$8,49 Unit Price incl. VAT
28
Spring
179013
$0,42 Unit Price incl. VAT
29
Torx Screw
880285
$3,65 Unit Price incl. VAT
30
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
31
Pad
299071
$0,50 Unit Price incl. VAT
32
Rear mudguard plate
1B000263
$6,81 Unit Price incl. VAT
33
Self-tapping screw
CM179101
$0,30 Unit Price incl. VAT
34
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT
35
Hose clamp
666047
$1,51 Unit Price incl. VAT
36
Screw w/ flange M6x14
874554
$0,25 Unit Price incl. VAT
37
Bracket with U.P.
1C000008
$10,59 Unit Price incl. VAT
38
Hose clamp
482290
$0,50 Unit Price incl. VAT
39
Hex socket screw
873433
$0,17 Unit Price incl. VAT
40
ABS electro-hydraulic control unit
1C001631
$1 736,10 Unit Price incl. VAT
41
Bracket with U.P.
1C000175
$67,48 Unit Price incl. VAT
42
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
43
Washer
179575
$0,17 Unit Price incl. VAT
44
Pad
939278
$0,34 Unit Price incl. VAT
45
Spacer
1C000253
$0,34 Unit Price incl. VAT
46
Tyre
1C000254
$16,91 Unit Price incl. VAT
47
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
48
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
49
Expansion plug
157716
$0,08 Unit Price incl. VAT
50
Low self-locking nut
709052
$1,10 Unit Price incl. VAT
51
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
52
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
53
Hose clamp
573918
$1,09 Unit Price incl. VAT
54
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
55
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
56
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
57
Molletta
CM006910
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
