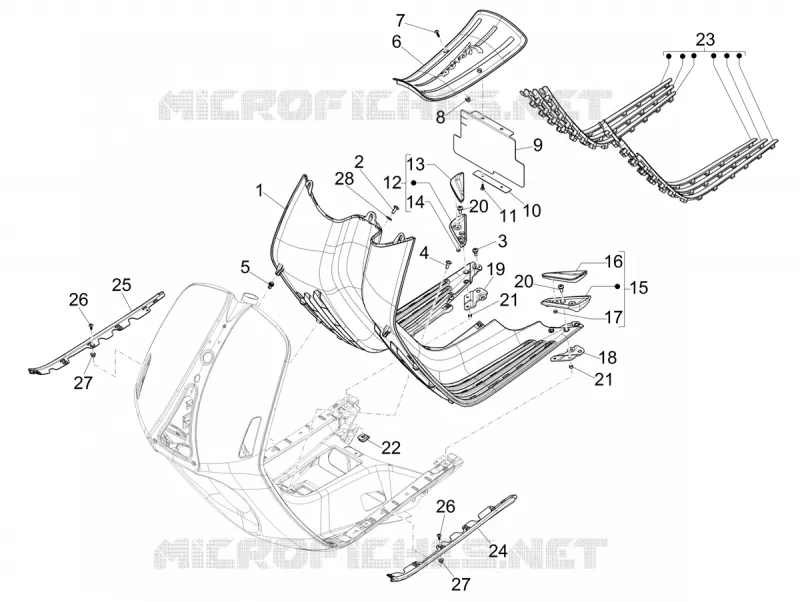

CENTRAL COVER - FOOTRESTS
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
26
27
27
28
1
Footrest
675166
$186,12 Unit Price incl. VAT
1
Repose-pieds peint
67516640Q9
Not Available
2
Torx Screw
880285
$3,65 Unit Price incl. VAT
3
screw
CM179202
$0,25 Unit Price incl. VAT
4
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
5
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
6
Complete battery flap
675511
$40,12 Unit Price incl. VAT
7
Self tapping screw 4,2x16
CM178606
$0,16 Unit Price incl. VAT
8
Expansion plug
157716
$0,08 Unit Price incl. VAT
9
Water protection
1B000311
$2,27 Unit Price incl. VAT
10
Upper plate
1B000312
$3,78 Unit Price incl. VAT
11
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
12
Repose-pieds D complet
1B011357000Q7
Not Available
13
RH rear footrests rubber
1B000190
Not Available
14
Nut
020105
$0,25 Unit Price incl. VAT
15
Repose-pieds G complet
1B011360000Q7
Not Available
16
Rubber for left footrest
1B000328
Not Available
17
Nut
020105
$0,25 Unit Price incl. VAT
18
LH clamp
1B000278
$5,38 Unit Price incl. VAT
19
RH clamp
1B000279
$5,38 Unit Price incl. VAT
20
Vis
CM179309
$0,50 Unit Price incl. VAT
21
Spacer
1B000285
$0,50 Unit Price incl. VAT
22
Plate
1B000372
$8,91 Unit Price incl. VAT
23
Kit strips, footboard
675530
$29,51 Unit Price incl. VAT
24
Left spoiler frame
1B011376000Q7
Not Available
25
Right spoiler frame
1B011377000Q7
Not Available
26
Self tapping screw
296141
$0,08 Unit Price incl. VAT
27
Expansion plug
157716
$0,08 Unit Price incl. VAT
28
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
