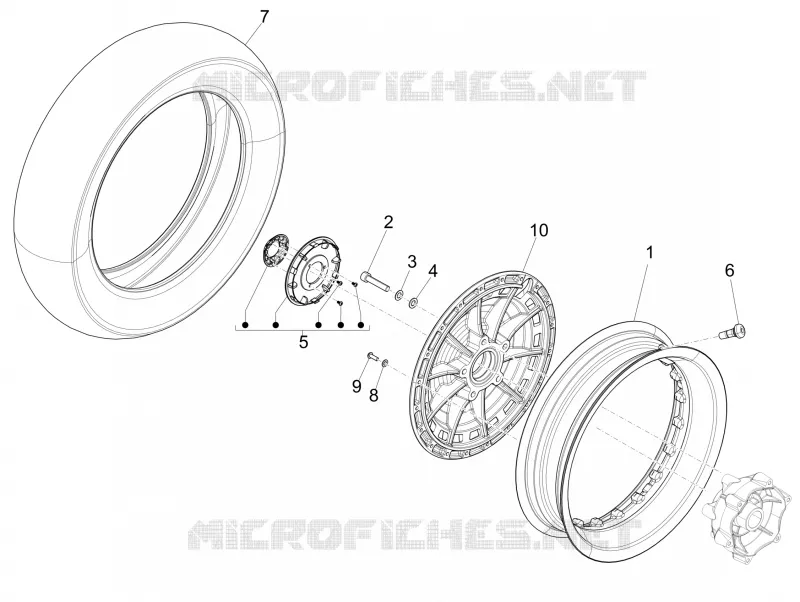

Front wheel
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
1
Jante avant
1C007384000G39
Not Available
2
Vis M8x40
1C006164
$1,26 Unit Price incl. VAT
3
Spring washer
709047
$0,08 Unit Price incl. VAT
4
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
5
Front hubcap
1C007626000Z2
Not Available
6
Tubeless valve
597679
$3,03 Unit Price incl. VAT
7
Pneu AV 120/70-12" (Michelin)
1C006433
Not Available
8
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
9
Torx Screw
669057
$1,51 Unit Price incl. VAT
10
Moyeu de roue
1C007381000G39
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
