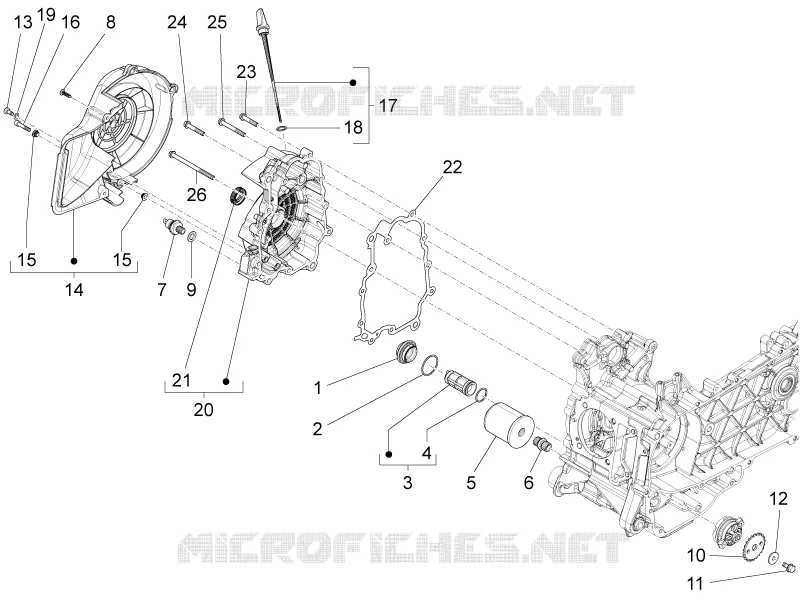

FLYWHEEL COVER - OIL FILTER
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
1
Oil filter plug
826165
$5,88 Unit Price incl. VAT
2
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
3
Intake oil filter
B015454
$2,52 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
5
Oil filter
82635R
$12,36 Unit Price incl. VAT
6
Special screw
B015455
$3,87 Unit Price incl. VAT
7
Capteur de pression d'huile minimale
1A024308R
$8,91 Unit Price incl. VAT
8
Self-tapping screw
CM179101
$0,30 Unit Price incl. VAT
9
Rondelle 10,5X17X1,5
1A011500
$0,59 Unit Price incl. VAT
10
Oil pump gear
287913
$6,47 Unit Price incl. VAT
11
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
12
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
13
Self-tapping screw
018623
Not Available
14
Convoyeur côté volant complet
1A019814
Not Available
15
Bushing
B015908
$1,18 Unit Price incl. VAT
16
Screw
CM180703
$0,92 Unit Price incl. VAT
17
Oil dipstick
1A000619
$2,19 Unit Price incl. VAT
18
O-ring
479986
Not Available
19
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
20
Complete flywheel cover
8798545
$158,88 Unit Price incl. VAT
21
Gasket ring 14x28x7
1A005835
$10,26 Unit Price incl. VAT
22
Flywheel housing cover gasket
877671
$4,12 Unit Price incl. VAT
23
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
24
screw M6x35
414838
$0,67 Unit Price incl. VAT
25
Screw w/ flange M6x50
B016775
$0,42 Unit Price incl. VAT
26
Screw w/ flange M6x90
B016776
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
