by

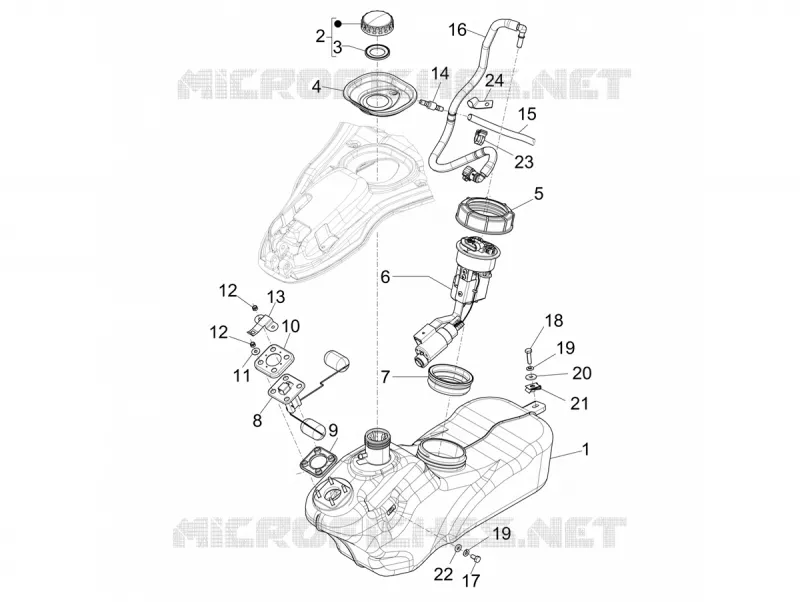

Tank
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
1
Réservoir de carburant complet.
1B008881
Not Available
2
Tank cap
1B000184
$42,54 Unit Price incl. VAT
3
Tank cover gasket
656021
$8,66 Unit Price incl. VAT
4
Fuel recovery tank
1B000259
$4,37 Unit Price incl. VAT
5
Ring nut
576546
$4,71 Unit Price incl. VAT
6
Pompe à carburant
1D003459
Not Available
7
Gasket
656003
$15,89 Unit Price incl. VAT
8
Indicator fuel level
680123
$40,60 Unit Price incl. VAT
9
Gasket
781091
$1,18 Unit Price incl. VAT
10
Indicator lock flange
781090
$1,18 Unit Price incl. VAT
11
Flat washer 5,3x14x1
060201
Not Available
12
Stop nut M5-6H DIN 985
804457
$0,16 Unit Price incl. VAT
13
Plate
1B000427
$26,65 Unit Price incl. VAT
14
Coupling
959591
$1,60 Unit Price incl. VAT
15
Tank breather pipe Ø5x10 L.1060
CM001432
$11,50 Unit Price incl. VAT
16
Complete fuel pipe
1B008941R
$41,86 Unit Price incl. VAT
17
Screw m6x12
031086
$0,08 Unit Price incl. VAT
18
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
19
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
20
Washer 6,2x18x2
013950
$0,34 Unit Price incl. VAT
21
Spring plate M6
254485
$0,34 Unit Price incl. VAT
22
Plain washer
006175
$1,68 Unit Price incl. VAT
23
Molletta
CM006910
$0,25 Unit Price incl. VAT
24
Hose clamp
675126
$5,97 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
