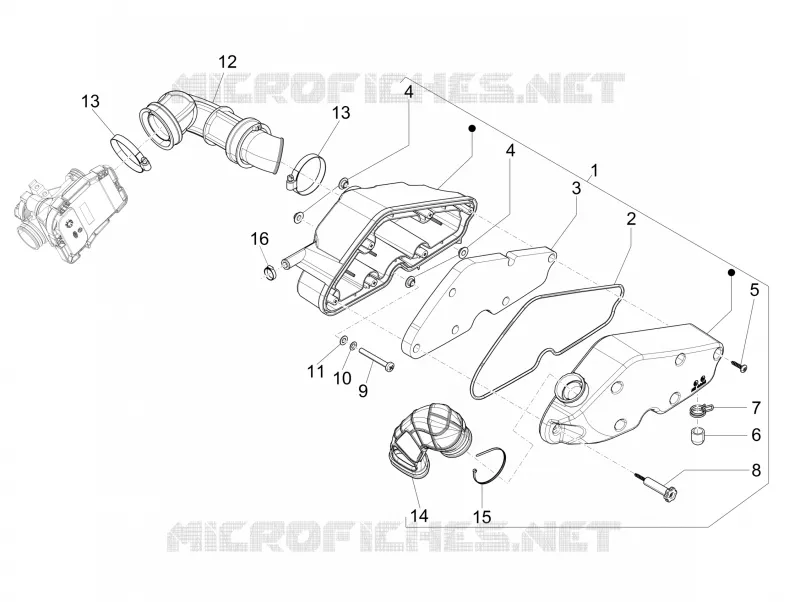

Air filter
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
1
Boîtier filtre à air compl.
1A019292
$158,88 Unit Price incl. VAT
2
Gasket
B018254
$2,61 Unit Price incl. VAT
3
Filter
B018213
Not Available
4
Knurled bushing
830056
$0,34 Unit Price incl. VAT
5
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
6
Cap
827831
$2,60 Unit Price incl. VAT
7
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
8
Knob
B018204
$12,86 Unit Price incl. VAT
9
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
10
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
11
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
12
Manchon épurateur
1A018442
$15,13 Unit Price incl. VAT
13
Hose clamp
614188
$2,61 Unit Price incl. VAT
14
INTAKE PIPE
1B000344
$19,68 Unit Price incl. VAT
15
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
16
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
