by

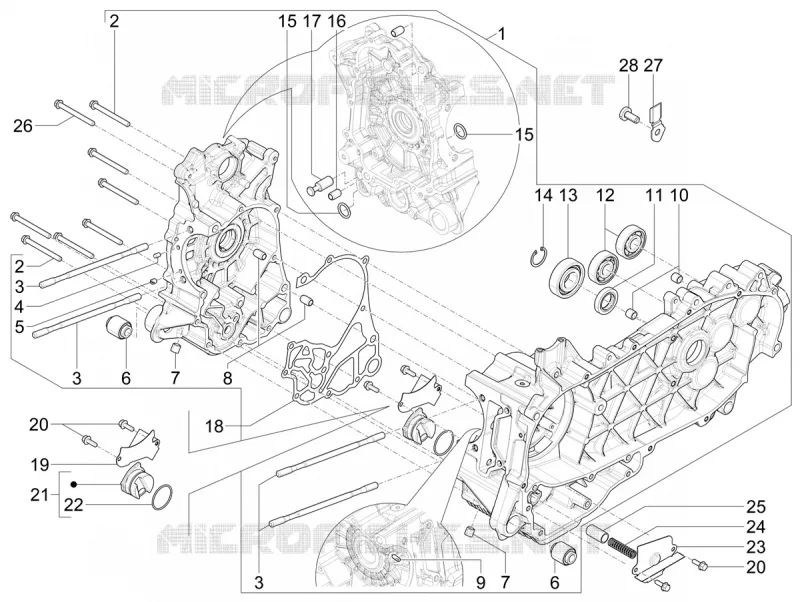

Crankcase
1
1
2
2
3
3
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
1
Carter complet 1e cat.
CM32570301
Not Available
1
Carter complet 2e cat.
CM32570302
Not Available
2
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
3
Stud bolt
1A001406
$3,61 Unit Price incl. VAT
4
Locating dowel
484993
$0,16 Unit Price incl. VAT
5
Nozzle
B018059
$0,59 Unit Price incl. VAT
6
Silent-block moteur
1A008919R
$8,32 Unit Price incl. VAT
7
Cheville à expansion
B015230
$3,53 Unit Price incl. VAT
8
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
9
Calibrated nozzle
880706
$2,61 Unit Price incl. VAT
10
Locating dowel
B015957
$0,59 Unit Price incl. VAT
11
Sealing ring 22x35x7
1A005834
$11,18 Unit Price incl. VAT
12
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
13
Radial bearing 20x50x14
83027R
$9,16 Unit Price incl. VAT
14
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
15
O-ring
273754
$0,16 Unit Price incl. VAT
16
Pin 6,5x9,5x15
239388
Not Available
17
Pivot fix. ressort
B015436
$1,35 Unit Price incl. VAT
18
Half crankcase gasket
B015429
$0,92 Unit Price incl. VAT
19
Upper oil bulkhead
B014135
$2,02 Unit Price incl. VAT
20
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
21
Filter door insert
B015430
$3,87 Unit Price incl. VAT
22
Gasket
431065
$0,42 Unit Price incl. VAT
23
Oil bulhead
B014134
$4,12 Unit Price incl. VAT
24
Valve spring
B015431
$0,50 Unit Price incl. VAT
25
Oil pressure adjusting valve
B015432
$2,61 Unit Price incl. VAT
26
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
27
Ring container lamination
876646
$0,76 Unit Price incl. VAT
28
Hex socket screw M6x14
1A003108
$0,42 Unit Price incl. VAT
