1
Engine displacement
300
2
Model
GTS
3
Year
2023
4
Trim
Vespa GTS 300 ABS E5 Super - Super Sport - Super Tech
5
Parts Catalog

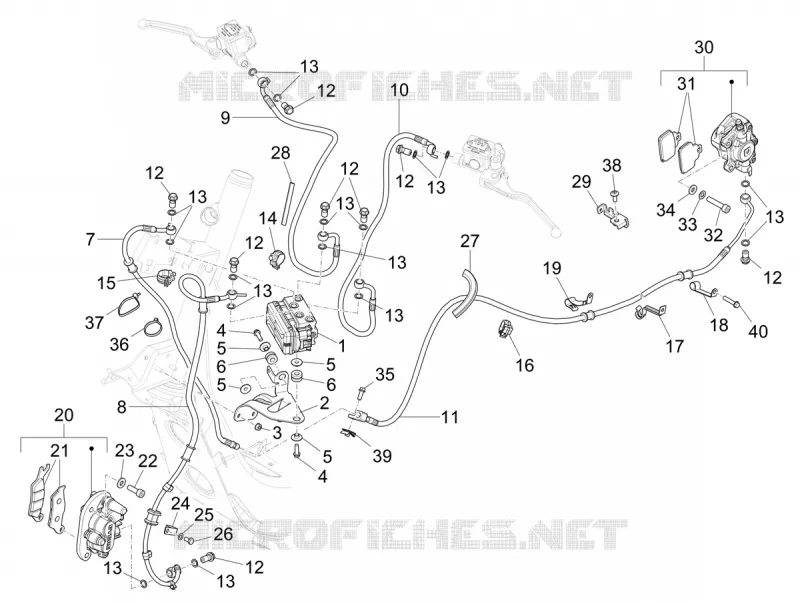

Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
REAR WHEEL
by
Wheel huosing - Mudguard
Brakes pipes - Calipers (ABS)
1
2
3
4
4
5
5
5
5
6
6
7
8
9
10
11
12
12
12
12
12
12
12
13
13
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
Centrale ABS
1C006399
$620,70 Unit Price incl. VAT
2
Staffa fissaggio centralina ABS
1C006400
$11,35 Unit Price incl. VAT
3
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
4
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
5
Spacer
1C000870
$0,92 Unit Price incl. VAT
6
Pad
939278
$0,34 Unit Price incl. VAT
7
Durit de frein arrière - jonction - unité ABS
1C006497
$40,78 Unit Price incl. VAT
8
Tuyau de frein unité ABS-étrier de frein avant
1C006496
Not Available
9
ABS unit left brake pump pipe
1C006495
$42,54 Unit Price incl. VAT
10
Tuyau maître-cylindre de frein D-unité ABS
1C006494
$44,39 Unit Price incl. VAT
11
Tuyaux frein arrière
1C006498
$61,25 Unit Price incl. VAT
12
Special screw
1C002059R
$2,02 Unit Price incl. VAT
13
Gasket
127927
$0,25 Unit Price incl. VAT
14
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT
15
Non return spring
CM006912
$0,42 Unit Price incl. VAT
16
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
17
Hose clamp
1C001520
$1,09 Unit Price incl. VAT
18
Hose clamp
564761
$0,38 Unit Price incl. VAT
19
Hose clamp
1C002845
$6,60 Unit Price incl. VAT
20
Pince frein avant
CM256505
$101,89 Unit Price incl. VAT
21
Brake pads couple
1C000760
$33,08 Unit Price incl. VAT
22
Vis tête cylindrique à six pans creux M8x25
1C006606
$1,27 Unit Price incl. VAT
23
Rondelle plate
1C006600
$0,34 Unit Price incl. VAT
24
Hose clamp
1C001420
$13,26 Unit Price incl. VAT
25
Screw m6x12
031086
$0,08 Unit Price incl. VAT
26
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
27
Edge protection L=100
CM023903
$0,78 Unit Price incl. VAT
28
Guard
583282
$7,80 Unit Price incl. VAT
29
Bracket with up
649635
$6,30 Unit Price incl. VAT
30
Rear brake hydraulic pin
CM326101
Not Available
31
Paire de plaquettes de frein
1C006573
$24,31 Unit Price incl. VAT
32
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
33
Spring washer
709047
$0,08 Unit Price incl. VAT
34
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
35
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
36
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
37
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
38
Screw M6x16
272836
$3,70 Unit Price incl. VAT
39
Spring plate M6
254485
$0,34 Unit Price incl. VAT
40
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
