Oil pump FOR Vespa GTS 300 ABS E5 Super - Super Sport - Super Tech FROM 2023

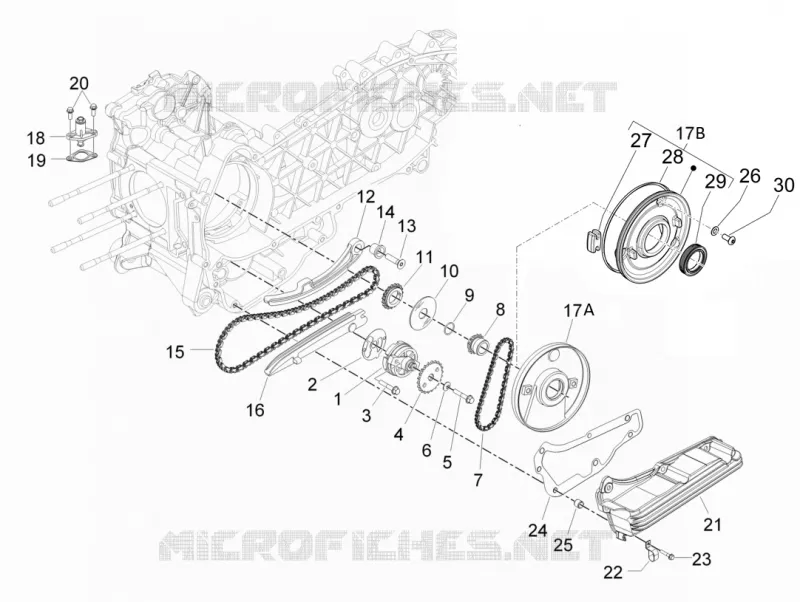

Oil pump

1

Oil pump assembly

82948R

$14,37 Unit Price incl. VAT

2

Carter-oil pump gasket

847929

$0,34 Unit Price incl. VAT

3

Screw w/ flange M5x35

829593

$0,50 Unit Price incl. VAT

4

Oil pump gear

287913

$6,47 Unit Price incl. VAT

5

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

6

Belleville spring Ã˜6,4xÃ˜20x2

436695

$0,59 Unit Price incl. VAT

7

Camshaft chain

82723R

$24,71 Unit Price incl. VAT

8

Oil pump control pinion

82783R

$7,99 Unit Price incl. VAT

9

O-Ring seal ring

825952

$0,15 Unit Price incl. VAT

10

Oil seal washer

483918

$0,53 Unit Price incl. VAT

11

Timing chain pinion

82782R

$7,06 Unit Price incl. VAT

12

Tge tendeur de chaîne

1A011207

$14,04 Unit Price incl. VAT

13

Screw w/ flange M6x25

B016774

$0,34 Unit Price incl. VAT

14

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

15

Oil pump chain

82649R

$13,37 Unit Price incl. VAT

16

Chain tensioner sliding block

847516

$4,25 Unit Price incl. VAT

17A

Timing system cover

847116

$22,74 Unit Price incl. VAT

17B

Timing system cover

1A0033175

$40,10 Unit Price incl. VAT

18

Support tendeur de chaîne

1A021978R

Not Available

19

Guarnizione cilindro/tendicatena

847928

$0,42 Unit Price incl. VAT

20

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

21

Carter à huile

1A012834

$36,17 Unit Price incl. VAT

22

Hose clamp

564629

$2,50 Unit Price incl. VAT

23

Screw w/ flange M6x30

B016792

$0,25 Unit Price incl. VAT

24

Gasket

846098

$3,28 Unit Price incl. VAT

25

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

26

Plain washer

487937

$0,09 Unit Price incl. VAT

27

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

28

O-Ring seal ring

B015449

$4,96 Unit Price incl. VAT

29

Gasket ring 24.35.7

1A005743

$10,42 Unit Price incl. VAT

30

Torx Screw M5x12

B014598

$0,25 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
