Rear suspension - Shock absorber/s FOR Vespa GTS 300 ABS E5 Super - Super Sport - Super Tech FROM 2023

Handlebars coverages

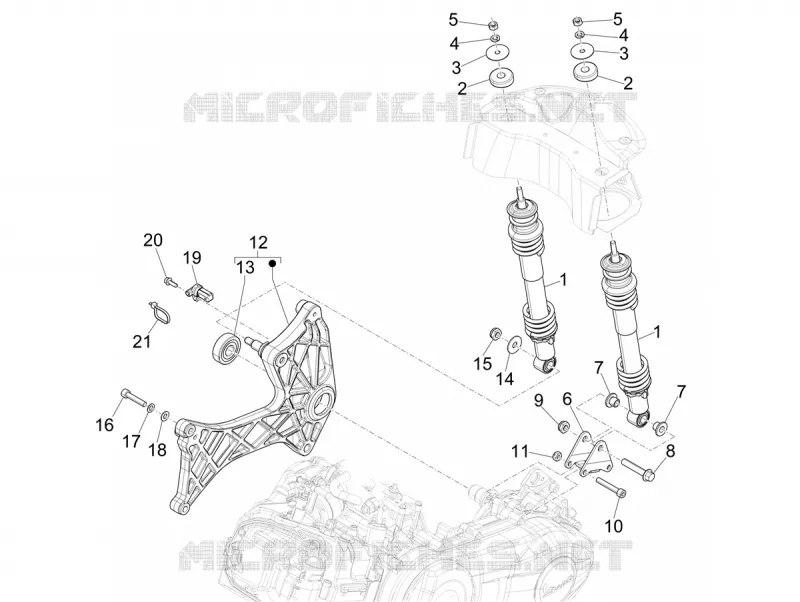

Rear suspension - Shock absorber/s

1

Amortisseur arrière complet

1C006341

$111,49 Unit Price incl. VAT

2

Upper buffer

178150

$0,92 Unit Price incl. VAT

3

Flat washer

267038

$0,67 Unit Price incl. VAT

4

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

5

Nut M8

021108

$0,25 Unit Price incl. VAT

6

plate

598143

$5,38 Unit Price incl. VAT

7

Bush

597149

$3,65 Unit Price incl. VAT

8

Screw w/ flange M10

268158

$1,26 Unit Price incl. VAT

9

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

10

Hex socket screw M8x50

844483

$0,67 Unit Price incl. VAT

11

Nut M8

020008

$0,08 Unit Price incl. VAT

12

Bras de suspension droit complet

1A019545

$99,11 Unit Price incl. VAT

13

Ball bearing

82545R

$12,11 Unit Price incl. VAT

14

Flat washer

1C001145

$1,87 Unit Price incl. VAT

15

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

16

Hex socket screw M8x40

149104

$0,51 Unit Price incl. VAT

17

Spring washer

709047

$0,08 Unit Price incl. VAT

18

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

19

Capteur arrière ABS

1D003828

$28,61 Unit Price incl. VAT

20

Torx convex big end screw M5x16

B0167965

$0,16 Unit Price incl. VAT

21

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
