1
Engine displacement
300
2
Model
GTS
3
Year
2023
4
Trim
Vespa GTS 300 ABS E5 Super - Super Sport - Super Tech
5
Parts Catalog

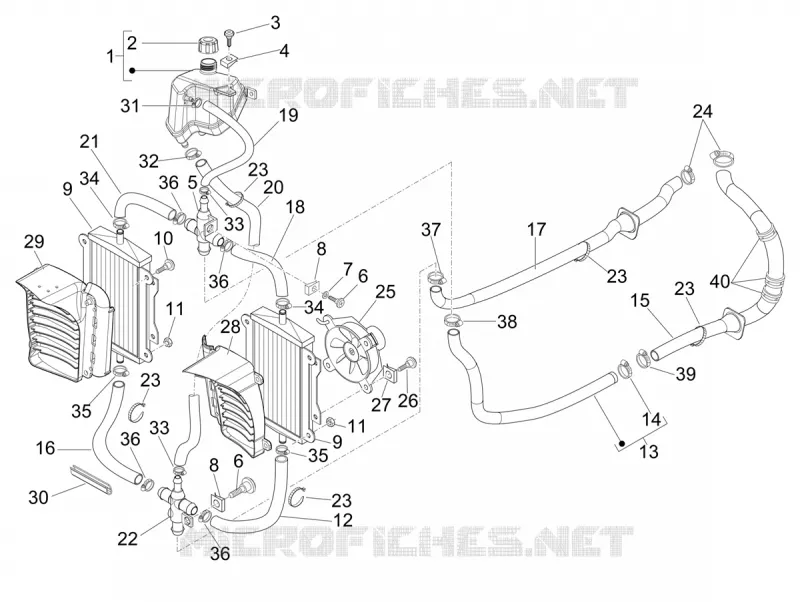

Cooling system
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
CYLINDER HEAD - VALVES
Cooling system
1
2
3
4
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
33
34
34
35
35
36
36
36
36
37
38
39
40
1
Réservoir
657111
Not Available
2
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
3
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Joint
577195
$8,16 Unit Price incl. VAT
6
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
7
Spring washer
709047
$0,08 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Water cooler
577183
$50,73 Unit Price incl. VAT
10
Self tapping screw 4,2x16
CM178606
$0,16 Unit Price incl. VAT
11
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
12
Lower joint-left radiator connection pipe
57313R
$26,74 Unit Price incl. VAT
13
Tuyau de connexion de raccord supérieur
1B010592
$27,87 Unit Price incl. VAT
14
Collier à ressort 28/12
CM226915
$2,35 Unit Price incl. VAT
15
Head coupling tube
653501
$31,97 Unit Price incl. VAT
16
Lower joint-right radiator connection pipe
577201
$26,74 Unit Price incl. VAT
17
Lower joint pipe
656437
$20,60 Unit Price incl. VAT
18
Hose radiator LH-upper joint
1B003454
$8,91 Unit Price incl. VAT
19
Hose coolant tank-upper joint
1B003456
$5,38 Unit Price incl. VAT
20
pipe
57314R
$7,23 Unit Price incl. VAT
21
Hose radiator RH-upper side
1B003455
$5,38 Unit Price incl. VAT
22
Joint for water pipes
656449
$17,83 Unit Price incl. VAT
23
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
24
Hose clamp
675874
$3,65 Unit Price incl. VAT
25
Fan engine
584669
$76,39 Unit Price incl. VAT
26
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
27
Spring plate M6
254485
$0,34 Unit Price incl. VAT
28
Left air duct
577187
$15,22 Unit Price incl. VAT
29
Right air duct
622839
$15,22 Unit Price incl. VAT
30
Guard
CM077703
$4,32 Unit Price incl. VAT
31
Hose clamp
CM001902
Not Available
32
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
33
Collier à ressort 18/12
CM226913
$1,48 Unit Price incl. VAT
34
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
35
Collier à ressort 21/12
CM226912
$2,06 Unit Price incl. VAT
36
Hose clamp
CM226910
$2,86 Unit Price incl. VAT
37
Collier à ressort 26/12
CM226914
$2,15 Unit Price incl. VAT
38
Hose clamp
CM226911
$3,28 Unit Price incl. VAT
39
Collier à ressort 28/12
CM226915
$2,35 Unit Price incl. VAT
40
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
