1
Engine displacement
150
2
Model
946
3
Year
2014
4
Trim
946 150 4T 3V ABS
5
Parts Catalog
Frame/bodywork
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Crankshaft

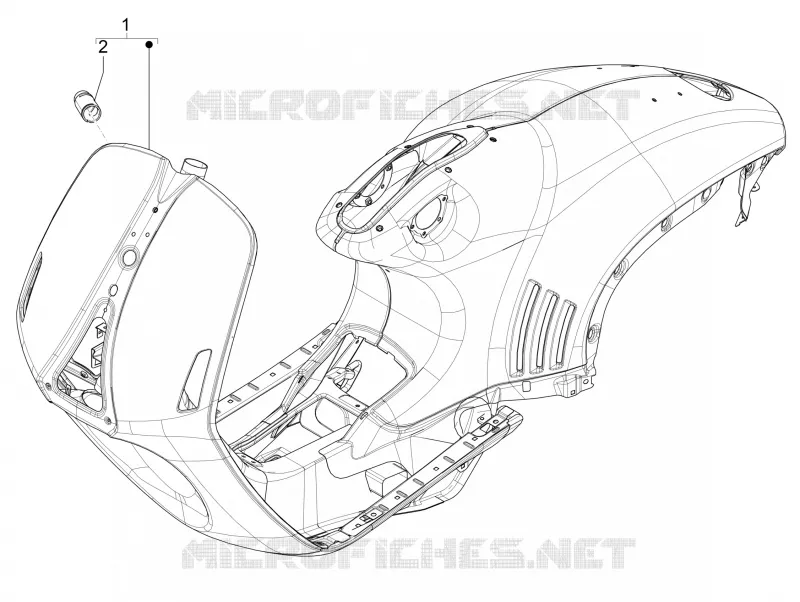

Frame/bodywork
1
2
1
Painted body with u.p.
1B0012025000DT
$3 473,55 Unit Price incl. VAT
1
Painted body with u.p.
1B0012025000HF
$3 473,55 Unit Price incl. VAT
1
Painted body with u.p.
1B0012025
$1 644,00 Unit Price incl. VAT
1
Painted body with u.p.
675178500090
Not Available
1
Painted body with u.p.
6751785000BR
Not Available
1
Body with U.P.
6751785
Not Available
1
Painted body with u.p.
1B001202500R7
$3 473,55 Unit Price incl. VAT
2
Lock support
298604
$16,40 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
