1
Engine displacement
150
2
Model
946
3
Year
2014
4
Trim
946 150 4T 3V ABS
5
Parts Catalog
Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Rear wheel
by
Stand/s

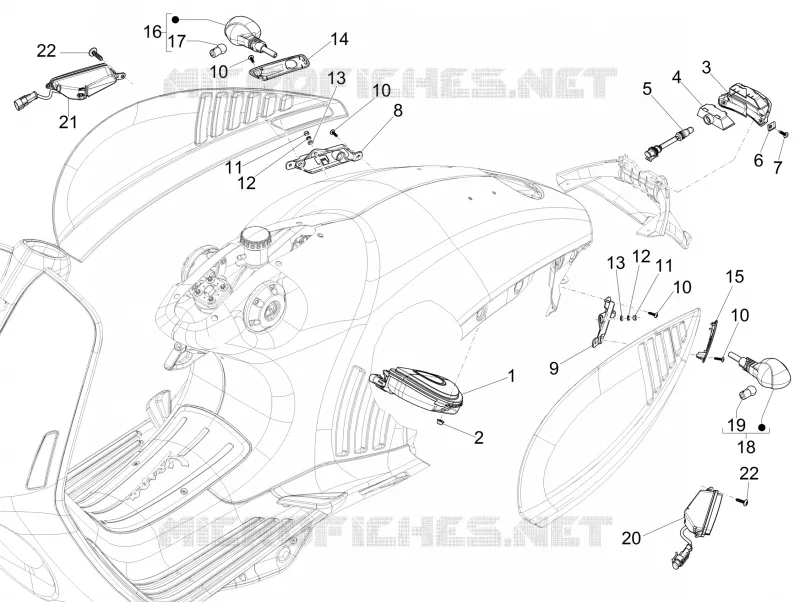

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
22
1
Taillight
1D000387
Not Available
1
Taillight
1D001576
$264,72 Unit Price incl. VAT
2
Self locking nut M5
241937
Not Available
3
Number-plate light
675611
$9,33 Unit Price incl. VAT
4
License plate light glass
1D000314
$3,53 Unit Price incl. VAT
5
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
6
Spring plate
CM017410
$0,34 Unit Price incl. VAT
7
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
8
RH turn indicator support
1B000620
$22,02 Unit Price incl. VAT
9
LH turn indicator support
1B000618
$22,02 Unit Price incl. VAT
10
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
11
Nut
675307
$2,61 Unit Price incl. VAT
12
Washer
012535
$0,08 Unit Price incl. VAT
13
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
14
Rh cover
1B000764
$63,02 Unit Price incl. VAT
15
LH cover
1B000760
$63,02 Unit Price incl. VAT
16
Right rear turn indicator
1D000307
$100,93 Unit Price incl. VAT
17
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
18
Left rear turn indicator
1D000306
$100,93 Unit Price incl. VAT
19
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
20
Left rear turn indicator
643385
$114,25 Unit Price incl. VAT
21
Right rear turn indicator
643386
$114,25 Unit Price incl. VAT
22
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
