Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Stand/s
by
Front glove-box - Knee-guard panel

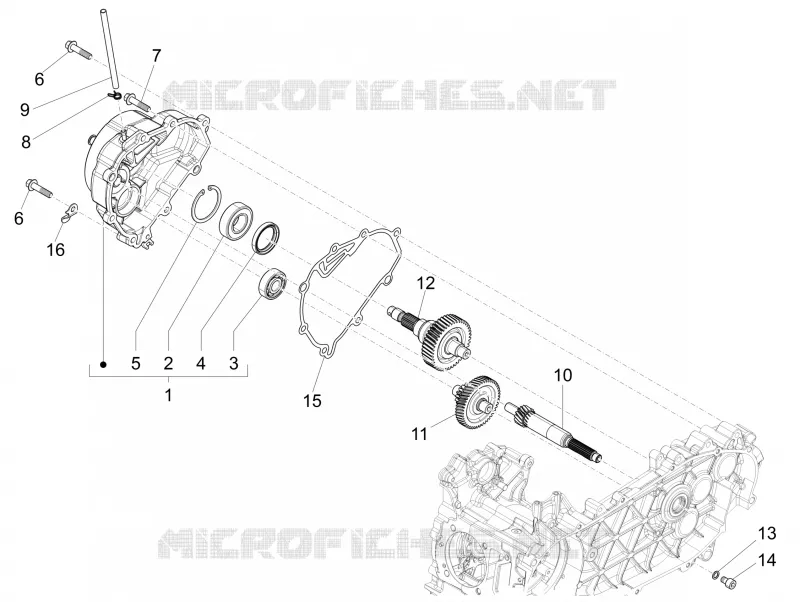

Reduction unit
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
1
Reducer cover with i.p.
B0160435
$137,02 Unit Price incl. VAT
2
Bearing 30.55.13
1A005376R
$14,12 Unit Price incl. VAT
2
Radial bearing 30x55x13
83034R
Not Available
3
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
4
Gasket ring 38x50x7
B015440
$7,15 Unit Price incl. VAT
5
Circlip
829206
$0,67 Unit Price incl. VAT
6
Flanged hexagon head screw M8x50
1A001623
$2,76 Unit Price incl. VAT
7
Screw w/ flange M8x35
1A000769
$2,35 Unit Price incl. VAT
8
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
B018670
$10,00 Unit Price incl. VAT
10
Driven pulley shaft z 15
B017168
$27,91 Unit Price incl. VAT
11
Transmission shaft
B0172415
$101,30 Unit Price incl. VAT
12
Rear wheel axle
B0172425
Not Available
13
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
14
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
15
Reduction unit cover gasket
B016456
$3,11 Unit Price incl. VAT
16
Hose clamp
1A000482
$4,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
