Parts Catalog

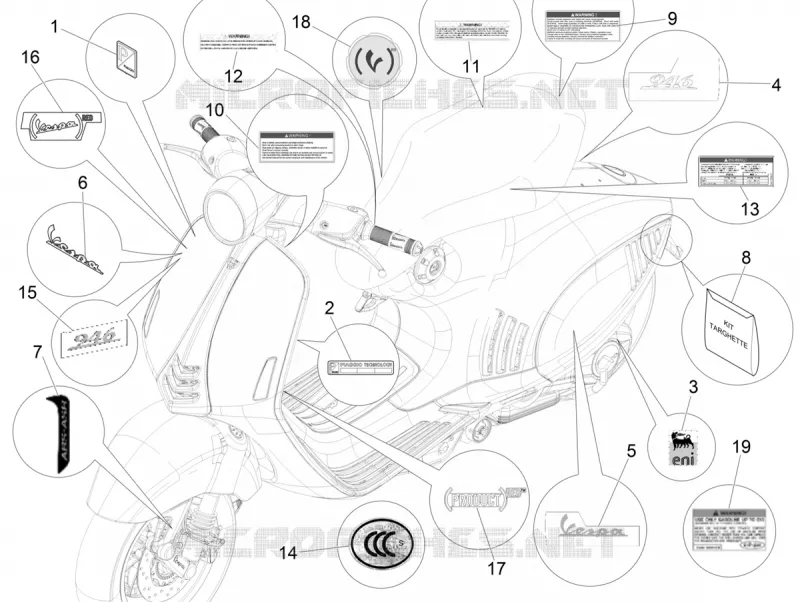

Plates - Emblems
6
Parts Diagram
Parts Catalog
Crankcase
by
Remote control switches - Battery - Horn
Plates - Emblems
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Shield "Piaggio"
576464
$8,51 Unit Price incl. VAT
2
Name plate "Piaggio Technology"
672200
Not Available
3
"""Eni"" label"
895839
Not Available
4
Name plate "946"
1B000432
$47,95 Unit Price incl. VAT
5
Side plate "VESPA"
1B000433
$49,04 Unit Price incl. VAT
6
"""Vespa"" front label"
656219
$10,00 Unit Price incl. VAT
7
Adhesive dataplate ABS-ASR
1B000559
$0,92 Unit Price incl. VAT
8
Anti-reflective labels kit
1B000552
$19,71 Unit Price incl. VAT
9
Battery decal
576702
$2,69 Unit Price incl. VAT
10
"Safety" plate
576704
$2,95 Unit Price incl. VAT
11
Accessories sticker
576708
$1,77 Unit Price incl. VAT
12
Fuel warning plate
576705
$2,02 Unit Price incl. VAT
13
Tyre pressure label
1G000029
$7,23 Unit Price incl. VAT
13
Tyre pressure label
1G000190
$7,23 Unit Price incl. VAT
14
Name plate CCC
672551
Not Available
15
Shield plate "946"
1B001289
$7,94 Unit Price incl. VAT
16
Name plate "Vespa red"
2H001823
$14,99 Unit Price incl. VAT
17
Adhesive dataplate "Product red"
2H001929
$16,34 Unit Price incl. VAT
18
Adhesive dataplate "RED"
2H001822
$12,62 Unit Price incl. VAT
19
Fuel decal E15
1B001420
$7,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
