1
Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

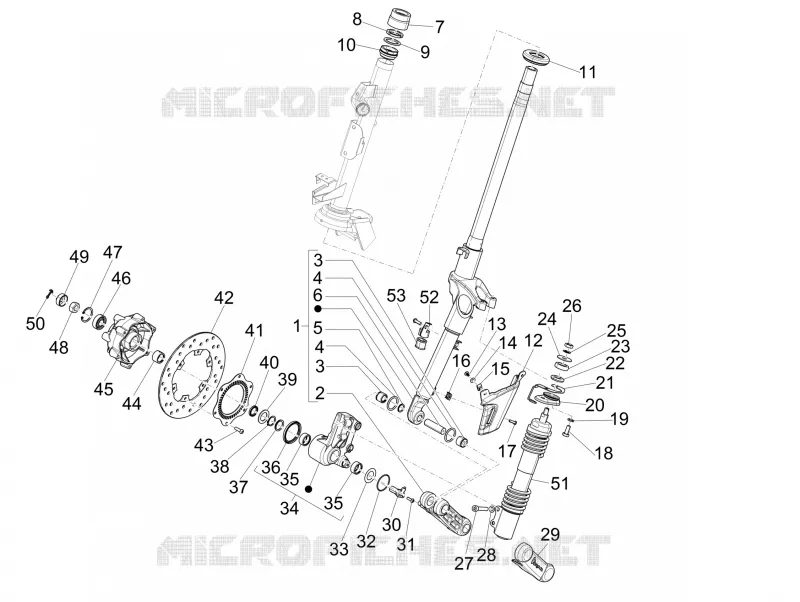

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Engine, assembly
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
Arm complete steering tube
6692345
$234,08 Unit Price incl. VAT
2
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
3
Roller cage
198513
$5,97 Unit Price incl. VAT
4
Gasket
006731
$0,34 Unit Price incl. VAT
5
Gasket ring
119219
$0,67 Unit Price incl. VAT
6
Piston pin
177451
$3,03 Unit Price incl. VAT
7
Collar
1B000044
$3,61 Unit Price incl. VAT
8
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
9
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
10
Upper thrust ring
650693
Not Available
11
Lower steering bearing
650075
Not Available
12
Front suspension cover
676187
$10,42 Unit Price incl. VAT
13
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
14
Washer
012528
$0,34 Unit Price incl. VAT
15
Spring plate
CM017410
$0,34 Unit Price incl. VAT
16
Spring plate M5
248419
$0,67 Unit Price incl. VAT
17
Screw
831153
$0,05 Unit Price incl. VAT
18
screw
597150
$3,65 Unit Price incl. VAT
19
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
21
Plate cpl.
1C000166
$14,46 Unit Price incl. VAT
22
Pad
174874
$2,36 Unit Price incl. VAT
23
Pad
174085
$1,18 Unit Price incl. VAT
24
Washer
012535
$0,08 Unit Price incl. VAT
25
Washer
174088
$0,84 Unit Price incl. VAT
26
Nut
021210
$0,16 Unit Price incl. VAT
27
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
28
Spring washer
709047
$0,08 Unit Price incl. VAT
29
Front suspension arm cover
561433
Not Available
30
ABS sensor
1D0001275
Not Available
31
Torx Screw
880285
$3,65 Unit Price incl. VAT
32
O-ring
177408
$0,08 Unit Price incl. VAT
33
Washer
177445
$0,34 Unit Price incl. VAT
34
Pin and shock absorber support
6691915
$119,29 Unit Price incl. VAT
35
Drawn cap
177436
$9,18 Unit Price incl. VAT
36
Ring
177494
$1,85 Unit Price incl. VAT
37
Ring
177521
$0,66 Unit Price incl. VAT
38
Ring
006425
$0,19 Unit Price incl. VAT
39
Washer
177414
$0,75 Unit Price incl. VAT
40
Gasket ring
177443
$1,77 Unit Price incl. VAT
41
Front ABS tone wheel
669115
$9,33 Unit Price incl. VAT
42
Brake disc
669188
$27,74 Unit Price incl. VAT
43
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
44
Roller cage
177442
$4,04 Unit Price incl. VAT
45
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
46
Bearing
177610
$8,41 Unit Price incl. VAT
47
Snap ring
006635
$0,25 Unit Price incl. VAT
48
Nut
021114
$0,51 Unit Price incl. VAT
49
Cap
177609
$2,19 Unit Price incl. VAT
50
Split pin
012789
$0,16 Unit Price incl. VAT
51
Complete front shock absorber
1C000133
$166,87 Unit Price incl. VAT
52
Hose clamp
1C000088
$7,15 Unit Price incl. VAT
53
Fairlead
230636
$1,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
