1
Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

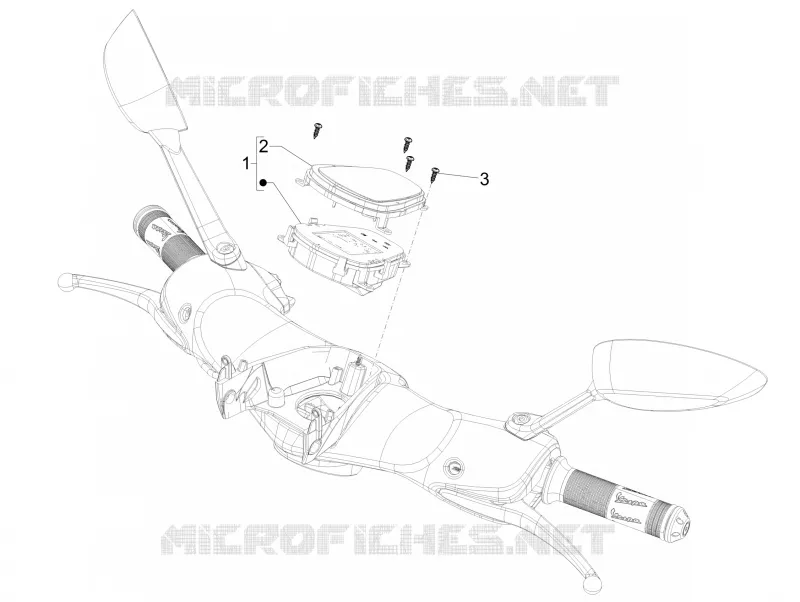

Meter combination - Cruscotto
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Silencer
Meter combination - Cruscotto
1
2
3
1
Meter assy, combination
1D001934
$421,73 Unit Price incl. VAT
1
Meter assy, combination
643388
Not Available
2
Glass
1D000213
$8,41 Unit Price incl. VAT
3
Plug screw
268596
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
