1
Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog
Engine, assembly
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Rocking levers support unit

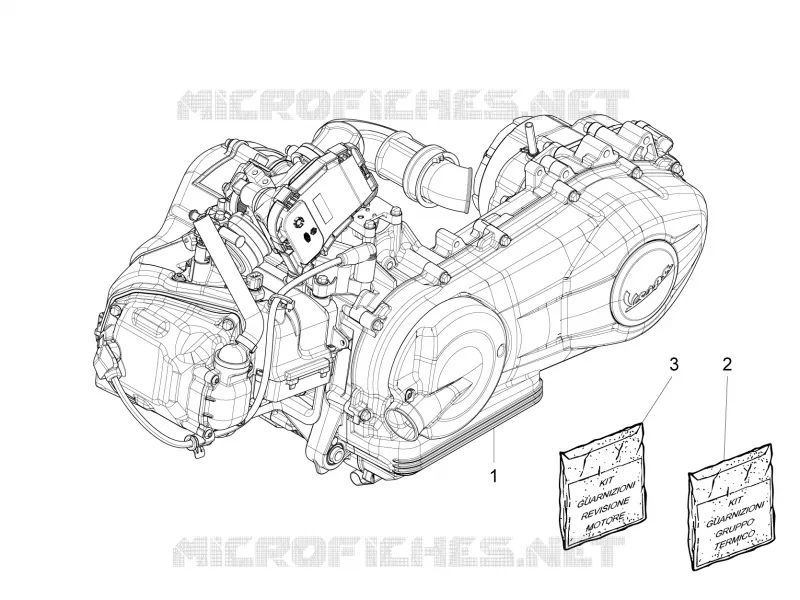

Engine, assembly
1
2
3
1
Complete motor 150 4T 3V E4
CM1628505
$1 265,43 Unit Price incl. VAT
1
Complete engine 150 4STR 3V ie
CM1628265
Not Available
1
Engine 150 4T 3V ie E3
CM1628205
$2 302,50 Unit Price incl. VAT
1
Complete motor 150 4T 3V E4
CM1628445
$1 059,05 Unit Price incl. VAT
2
Cylinder gasket kit
1R000096
$28,35 Unit Price incl. VAT
2
Cylinder gasket kit
1R000098
$28,35 Unit Price incl. VAT
3
Engine gasket kit
1R000099
$72,90 Unit Price incl. VAT
3
Engine gasket kit
1R000097
$72,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
