1
Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

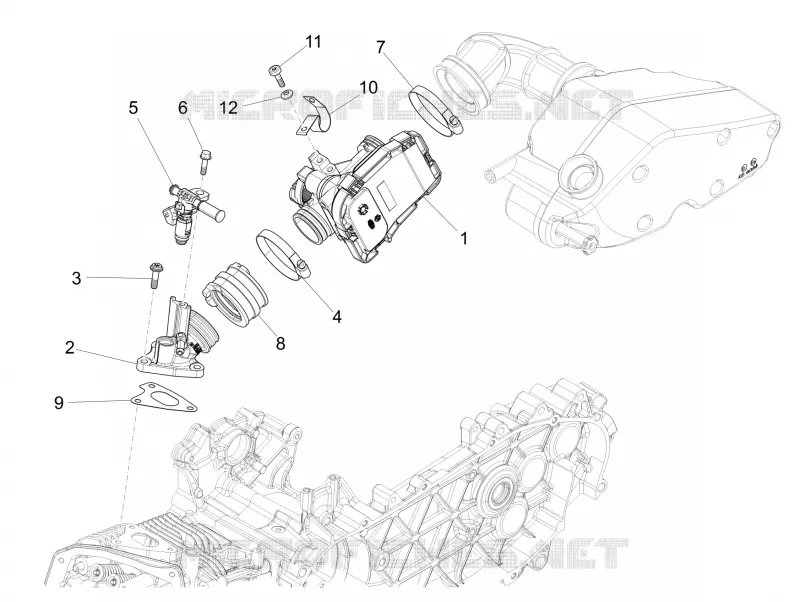

Throttle body - Injector - Union pipe
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Oil pump
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
1
Throttle body with E.C.U. HW308
CM084918
$550,39 Unit Price incl. VAT
1
Throttle body with ECU
CM283303
$550,39 Unit Price incl. VAT
2
Induction joint with I.P.
1A003907
Not Available
2
Induction joint with I.P.
1A001358
$25,82 Unit Price incl. VAT
2
Induction joint with U.P.
1A003947
$35,51 Unit Price incl. VAT
2
Union pipe
1A007986
$18,05 Unit Price incl. VAT
3
screw M6x22
828152
$0,15 Unit Price incl. VAT
4
Hose clamp
709532
Not Available
4
Hose clamp
1A000833
$5,99 Unit Price incl. VAT
5
Injector complete with connection
8799715
$204,27 Unit Price incl. VAT
6
Screw w/ flange
1A003001
$0,51 Unit Price incl. VAT
6
Screw w/ flange M5x20
872269
$3,70 Unit Price incl. VAT
7
Hose clamp
614188
$2,61 Unit Price incl. VAT
8
Throttle body hose
1A003984
$4,46 Unit Price incl. VAT
9
Gasket
1A003750
$0,50 Unit Price incl. VAT
10
Metallic clamp
642044
$1,01 Unit Price incl. VAT
11
Screw M5x15
873653
$0,92 Unit Price incl. VAT
12
Washer
012528
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
