Engine displacement
200
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog
Head-valves
6
Parts Diagram
Parts Catalog
Rear wheel
by
Rocker levers support
Head-valves
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Valve half-cone
285846
$2,94 Unit Price incl. VAT
2
Upper cap
483914
$0,91 Unit Price incl. VAT
3
Spring
828480
$2,25 Unit Price incl. VAT
4
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
5
Lower cap
483711
$1,35 Unit Price incl. VAT
6
Intake valve
484733
$16,91 Unit Price incl. VAT
6
Exaust valve
484734
$24,59 Unit Price incl. VAT
6
Intake valve
843362
$16,91 Unit Price incl. VAT
7
Cylinder/head gasket
829983
$17,69 Unit Price incl. VAT
7
Cylinder head gasket 0,3 mm
831174
$5,82 Unit Price incl. VAT
8
Cylinder head
843506
Not Available
8
Cylinder head
832354
Not Available
9
Screw w/ flange
485603
$0,68 Unit Price incl. VAT
10
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
11
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
12
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
13
Exhaust pipe gasket
480853
$4,89 Unit Price incl. VAT
14
Thermostat cover
834393
$12,45 Unit Price incl. VAT
15
Screw M5x22
828662
$0,25 Unit Price incl. VAT
16
Water thermostat
82710R
Not Available
17
Thermistor
82622R
$10,82 Unit Price incl. VAT
18
Head-carb.by-pass pipe
827921
$19,68 Unit Price incl. VAT
19
Hose clamp
CM002903
$2,95 Unit Price incl. VAT
20
pipe
834394
Not Available

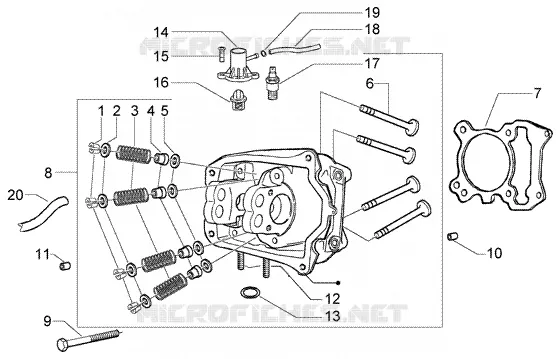

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
