Engine displacement
200
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog
Pump group-oil pan
6
Parts Diagram
Parts Catalog
Driven pulley
by
rear wheel shaft

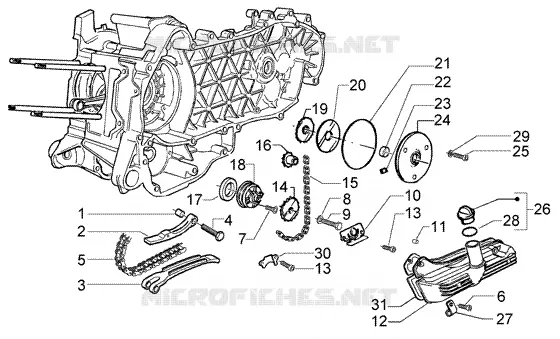

Pump group-oil pan
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Chain tensioner rod spacer
485868
$0,29 Unit Price incl. VAT
2
Chain tensioner rod
828303
Not Available
3
Chain tensioner sliding block
828308
$1,34 Unit Price incl. VAT
4
Screw w/ flange M6x25
414837
Not Available
5
Camshaft chain
82644R
Not Available
6
Screw w/ flange M6x25
414837
Not Available
7
Screw w/ flange
433477
$0,19 Unit Price incl. VAT
8
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
9
Screw w/ flange M6x14
833722
Not Available
10
Lower oil bulkhead
483767
$0,38 Unit Price incl. VAT
11
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
12
Motor oil cup
843761
$13,95 Unit Price incl. VAT
12
Pan oil
829523
$16,58 Unit Price incl. VAT
13
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
14
Oil pump gear
287913
$6,47 Unit Price incl. VAT
15
Oil pump chain
82649R
$13,37 Unit Price incl. VAT
16
Oil pump control pinion
82783R
$7,99 Unit Price incl. VAT
16
Oil pump control pinion
483784
Not Available
17
Carter-oil pump gasket
486082
$0,29 Unit Price incl. VAT
18
Oil pump assembly
844352
Not Available
18
Oil pump
487343
Not Available
19
Timing pinion
825595
$22,39 Unit Price incl. VAT
20
Oil seal washer
483918
$0,53 Unit Price incl. VAT
21
Gasket ring
825620
$8,21 Unit Price incl. VAT
22
Gasket ring
82538R
$8,01 Unit Price incl. VAT
23
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
24
Cover
828875
$11,51 Unit Price incl. VAT
25
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
26
Oil filler plug
846819
Not Available
26
Oil plug assembly
843364
$1,39 Unit Price incl. VAT
26
Oil plug assembly
827761
Not Available
27
Hose clamp
564629
$2,50 Unit Price incl. VAT
28
O-ring
479986
Not Available
29
Plain washer
487937
$0,09 Unit Price incl. VAT
30
Upper oil bulkhead
485047
$0,48 Unit Price incl. VAT
31
Sump gasket
830128
$2,77 Unit Price incl. VAT
