Engine displacement
200
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog
Flywheel magneto-secondary air box
6

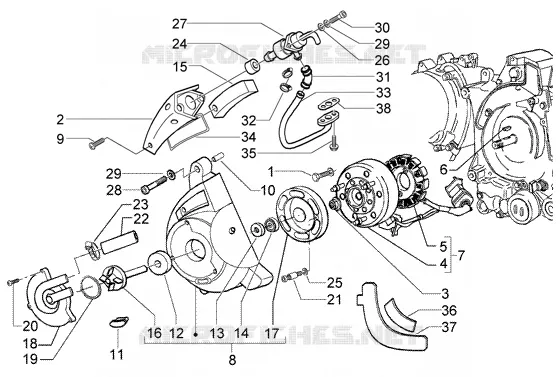

Parts Diagram
Parts Catalog
Crankase cooling
by
Belt cooling box
Flywheel magneto-secondary air box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
1
Screw M5x22
828662
$0,25 Unit Price incl. VAT
2
Cover
831255
$7,69 Unit Price incl. VAT
3
Flanged nut M12
436783
Not Available
4
Rotor, assy.
828090
Not Available
5
Stator
828135
Not Available
6
Transmission key
000267
$1,19 Unit Price incl. VAT
7
Cdi magneto assy
82653R
Not Available
8
Flywheel cover
8447485
Not Available
8
Flywheel cover
8413625
Not Available
9
Screw M5x22
828662
$0,25 Unit Price incl. VAT
10
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
11
Cover
825529
$5,38 Unit Price incl. VAT
12
Gasket ring
485084
Not Available
13
Ceramic insert
486216
Not Available
14
Ball bearing
827149
Not Available
15
Filter
831257
$3,78 Unit Price incl. VAT
16
Water pump shaft assy.
827714
Not Available
17
Drive coupling
487459
$7,23 Unit Price incl. VAT
18
Water pump cover
486237
$20,60 Unit Price incl. VAT
19
O-ring
485080
$0,72 Unit Price incl. VAT
20
Screw M5x22
828662
$0,25 Unit Price incl. VAT
21
screw
828569
Not Available
22
Oil delivery pipe
840022
Not Available
23
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
24
Gasket
831256
$4,82 Unit Price incl. VAT
25
Washer
828535
$2,99 Unit Price incl. VAT
26
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
27
SAS valve
82731R
$89,76 Unit Price incl. VAT
28
screw
828493
$2,95 Unit Price incl. VAT
29
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
30
Self tapping screw L=35 mm
296458
$2,25 Unit Price incl. VAT
31
s.a.s. joint pipe
831259
$2,05 Unit Price incl. VAT
32
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
33
pipe
831260
$31,21 Unit Price incl. VAT
34
Gasket
831258
$4,82 Unit Price incl. VAT
35
Screw w/ flange M6x14
833722
Not Available
36
Soundproofing material
834153
Not Available
37
Cover
834119
$5,38 Unit Price incl. VAT
38
Gasket
832059
$4,89 Unit Price incl. VAT
