Engine displacement
200
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog
Fuel pump
6
Parts Diagram
Parts Catalog
Crankshaft
by
Cooling system
Fuel pump
1
2
3
4
5
6
7
7
7
7
7
7
7
7
7
7
8
9
10
11
12
13
13
14
15
1
Fuel pump
CM120901
$85,05 Unit Price incl. VAT
2
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
3
Bracket
620050
$5,38 Unit Price incl. VAT
4
Fuel filter
270423
$10,67 Unit Price incl. VAT
5
Flexible support
272842
$5,38 Unit Price incl. VAT
6
Hose clamp
109960
Not Available
7
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
8
pipe
CM007504
Not Available
9
pipe
CM007504
Not Available
10
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
11
Tee union
828325
$1,57 Unit Price incl. VAT
12
Fuel pipe
CM004126
Not Available
13
Tank pipe
CM001424
Not Available
14
Fuel pipe
CM004126
Not Available
15
Valve
574633
Not Available

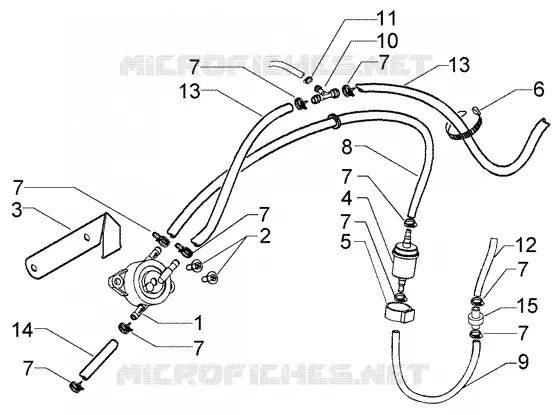

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
