1
Engine displacement
50
2
Model
VESPA
3
Year
0
4
Trim
50 FL2
5
Parts Catalog
Brake shoes
6
Parts Diagram
Parts Catalog
Gear box
by
Rear drum cpl.
Brake shoes
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
BRAKE JAW WITH I.P.
414450
Not Available
2
Plate
024410
Not Available
3
Ring
000061
$2,25 Unit Price incl. VAT
4
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
5
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
6
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
7
Spring
078522
$5,00 Unit Price incl. VAT
8
BRAKE SHOE PLATE
215934
Not Available
9
O-ring
006716
$2,25 Unit Price incl. VAT
10
Split pin
012761
$1,55 Unit Price incl. VAT
11
LEVER
215937
Not Available
12
Pin
090306
$6,30 Unit Price incl. VAT
13
Bolt
015510
$6,60 Unit Price incl. VAT
14
plate
042047
$2,95 Unit Price incl. VAT
15
Plate
094779
$8,01 Unit Price incl. VAT
16
Washer
012539
$2,95 Unit Price incl. VAT
17
Washer
013940
$2,95 Unit Price incl. VAT
18
Screw
023823
$8,01 Unit Price incl. VAT
19
Nut
020207
$0,08 Unit Price incl. VAT
20
Nut
015317
$2,95 Unit Price incl. VAT

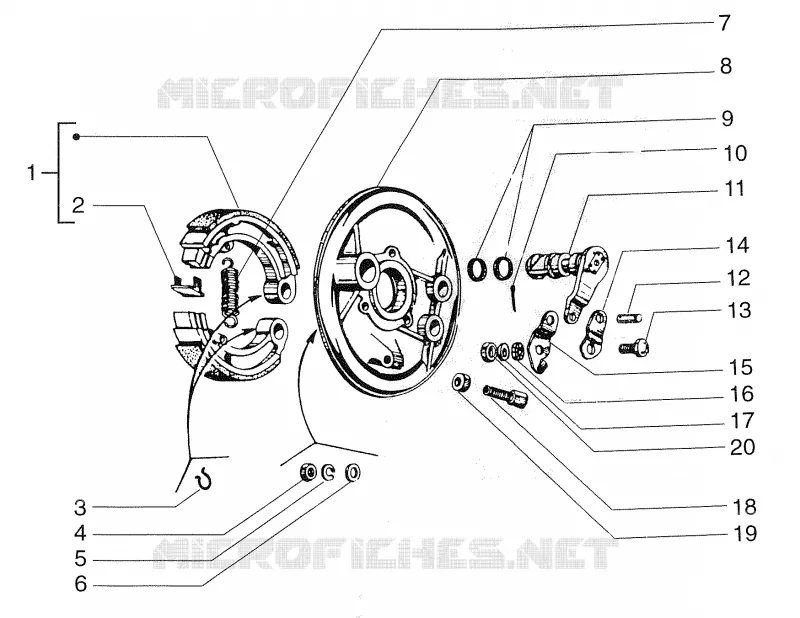

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
