Parts Catalog
Clutch cover
6
Parts Diagram
Parts Catalog
Exhaust pipe
by

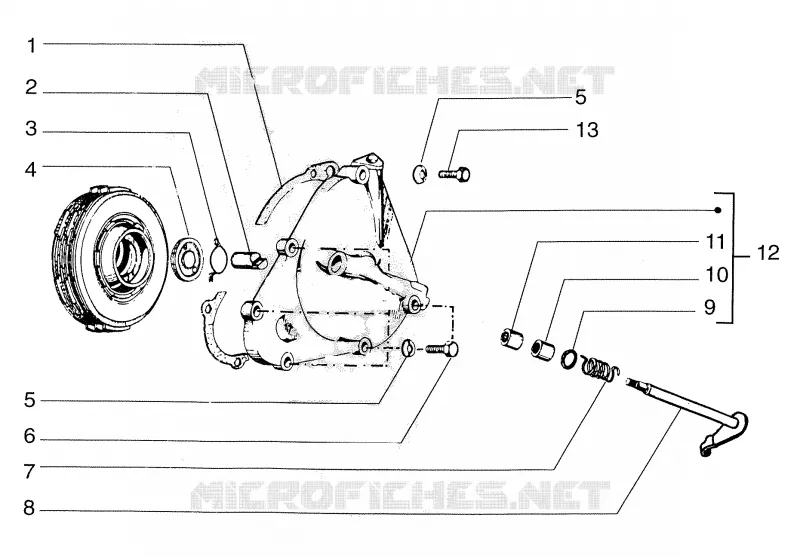

Clutch cover
1
2
3
4
5
5
6
7
8
9
10
11
12
13
1
Gasket
079002
Not Available
2
Pin
286305
Not Available
3
Ring
286406
$1,65 Unit Price incl. VAT
4
Disc
286024
Not Available
5
Washer
016335
$0,07 Unit Price incl. VAT
6
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
7
Spring
239275
$3,56 Unit Price incl. VAT
8
LEVER
286304
Not Available
9
Gasket
006710
$0,17 Unit Price incl. VAT
10
Drawn cap
286101
$0,27 Unit Price incl. VAT
11
Drawn cap
165945
$3,39 Unit Price incl. VAT
12
COVER
286100
Not Available
13
screw
030050
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
