Parts Catalog
Shock absorber
6

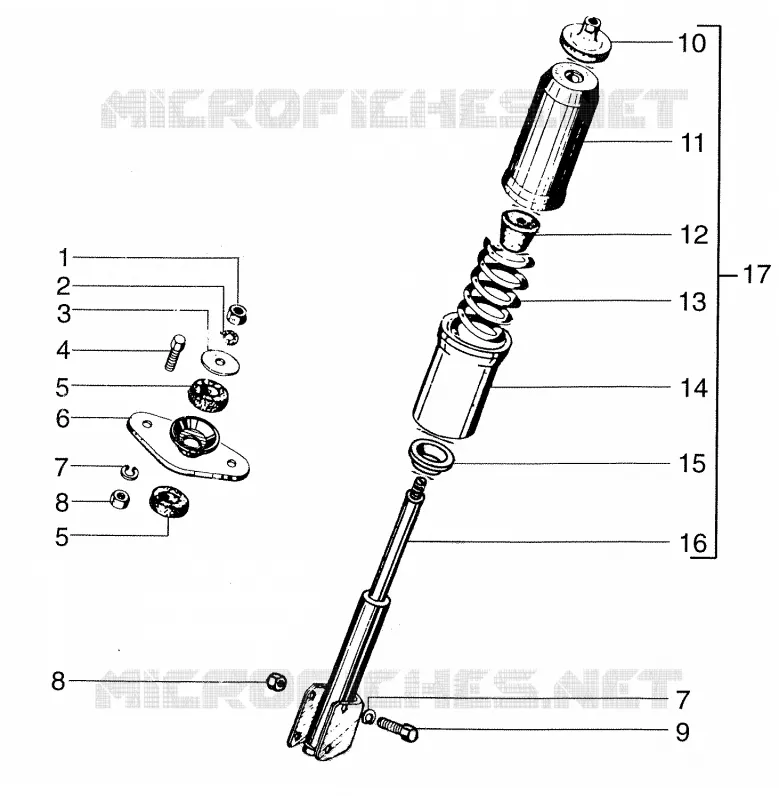

Parts Diagram
Parts Catalog
Front brake lever
by
Shock absorber
Shock absorber
1
2
3
4
5
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
1
Nut
021210
$0,16 Unit Price incl. VAT
2
Washer 17,6x11x2,5
016410
$1,55 Unit Price incl. VAT
3
Washer
174088
$0,84 Unit Price incl. VAT
4
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
5
Pad
216209
$5,53 Unit Price incl. VAT
6
Bracket
225748
Not Available
7
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
8
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
9
screw
030074
$3,65 Unit Price incl. VAT
10
DISC
216234
Not Available
11
PROTECTION
266305
Not Available
12
Pad
216233
Not Available
13
SPRING
198286
Not Available
14
SLEEVE
266304
Not Available
15
DISC
225743
Not Available
16
NOT SPECIFIC
266539
Not Available
17
NOT SPECIFIC
266538
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
