Engine displacement
500
2
Model
MP3
3
Year
2018
4
Trim
MP3 500 Business ABS E4
5
Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
MAIN WIRING HARNESS
by
Windshield - Glass
Crankcase cover - Crankcase cooling
1A
1B
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
1A
Complete transmission cover
8769925
$276,75 Unit Price incl. VAT
1B
Couvercle de la transmission avec pièces internes
1A0135195
$299,36 Unit Price incl. VAT
2
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
3
Baffle
874136
$2,31 Unit Price incl. VAT
4
Radial bearing
840277
$10,67 Unit Price incl. VAT
5
Circlip
825667
$0,42 Unit Price incl. VAT
6
Screw w/ flange M6x40
B016763
$3,65 Unit Price incl. VAT
7
screw
B016766
$0,94 Unit Price incl. VAT
8
Screw w/ flange M8x100
B016767
$1,20 Unit Price incl. VAT
9
Couvercle insonoris. Transm.
1A011311
$64,50 Unit Price incl. VAT
10
Couvercle de refroidissement extérieur
1A011308
$18,56 Unit Price incl. VAT
11
Cooling grille cover
975684
$62,26 Unit Price incl. VAT
12
Self-tap screw
478533
$1,36 Unit Price incl. VAT
13
Soundproofing material
833321
$12,45 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
15
Transmission cover
840439
$8,16 Unit Price incl. VAT
16
Spring
CM013201
$0,40 Unit Price incl. VAT
17
Bague d'étanchéité 58.70.6
1A011140
$7,26 Unit Price incl. VAT
18
Roulement à billes
1A011333
Not Available
19
Circlip
1A011199
$2,03 Unit Price incl. VAT
20
Roulement à billes 8x22x7
1A011436
$3,07 Unit Price incl. VAT
21
Roulement à billes 12x28x8
1A014132
$3,49 Unit Price incl. VAT
22
Bague d'étanchéité
1A014066
$14,91 Unit Price incl. VAT
23
Rondelle
1A014477
$2,20 Unit Price incl. VAT
24
Rondelle d'arrêt
1A011200
$4,30 Unit Price incl. VAT
25
Bague M52x1
1A011201
$14,85 Unit Price incl. VAT
26
Cache du couvercle de la transmission
1A014257
Not Available
26
Cache du couvercle de la transmission
1A016451
$4,14 Unit Price incl. VAT
27
Couvercle insonoris. Transm.
1A013892
Not Available
28
Couvercle de refroidissement extérieur
1A013894
$7,88 Unit Price incl. VAT
29
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
30
Air filter
833318
$13,95 Unit Price incl. VAT
31
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
32
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
33
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT

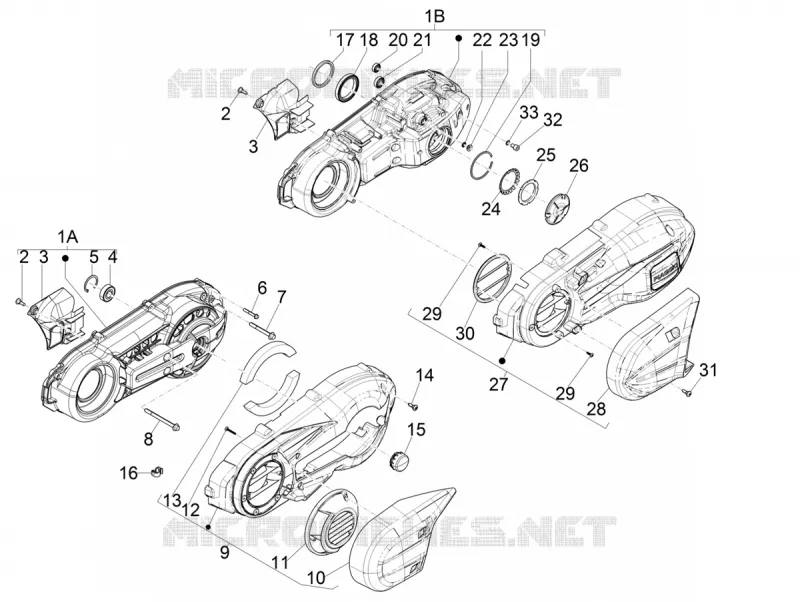

Find the detailed Crankcase cover - Crankcase cooling GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
